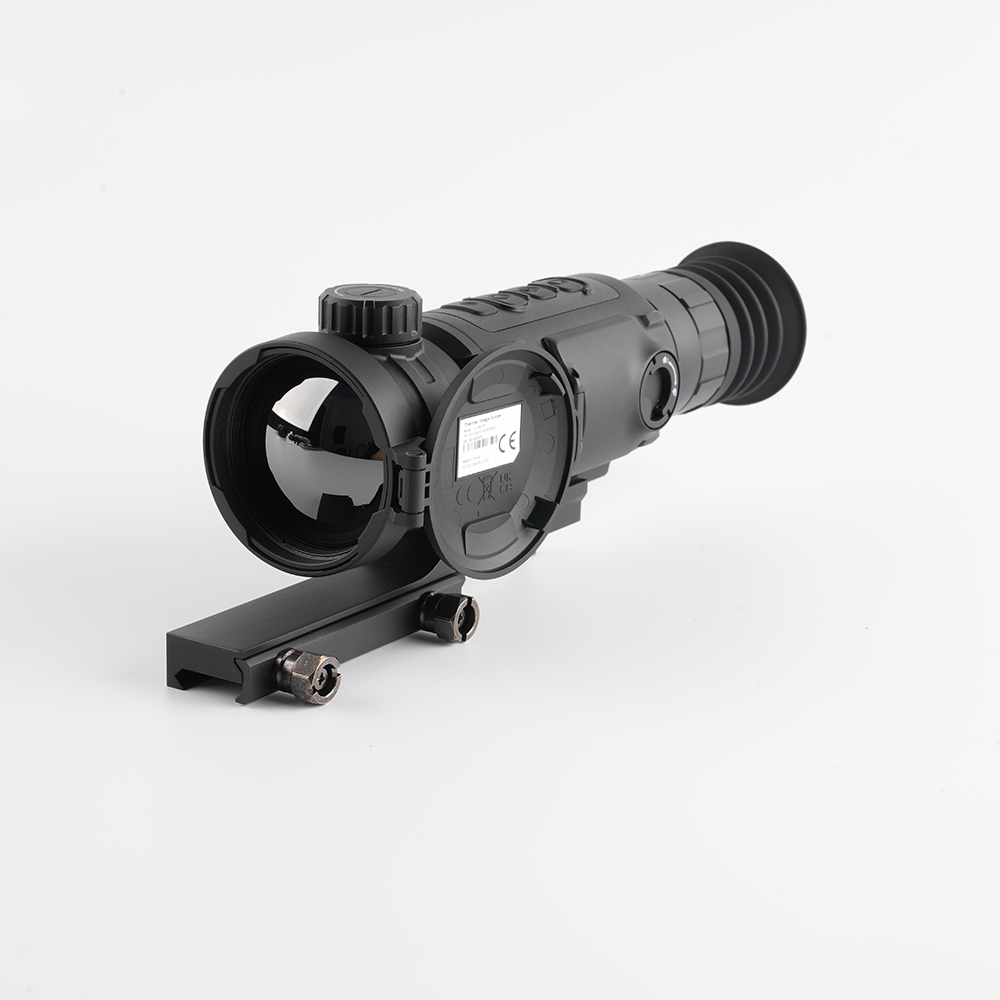

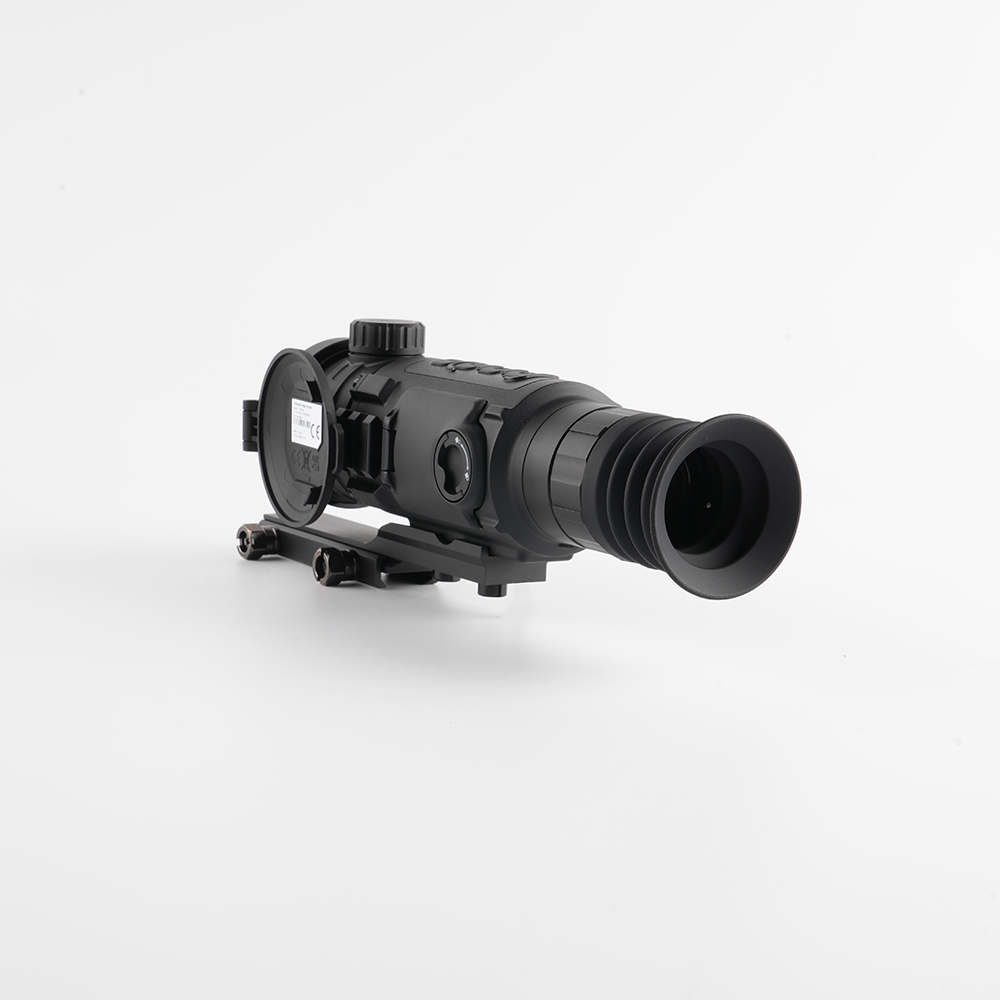

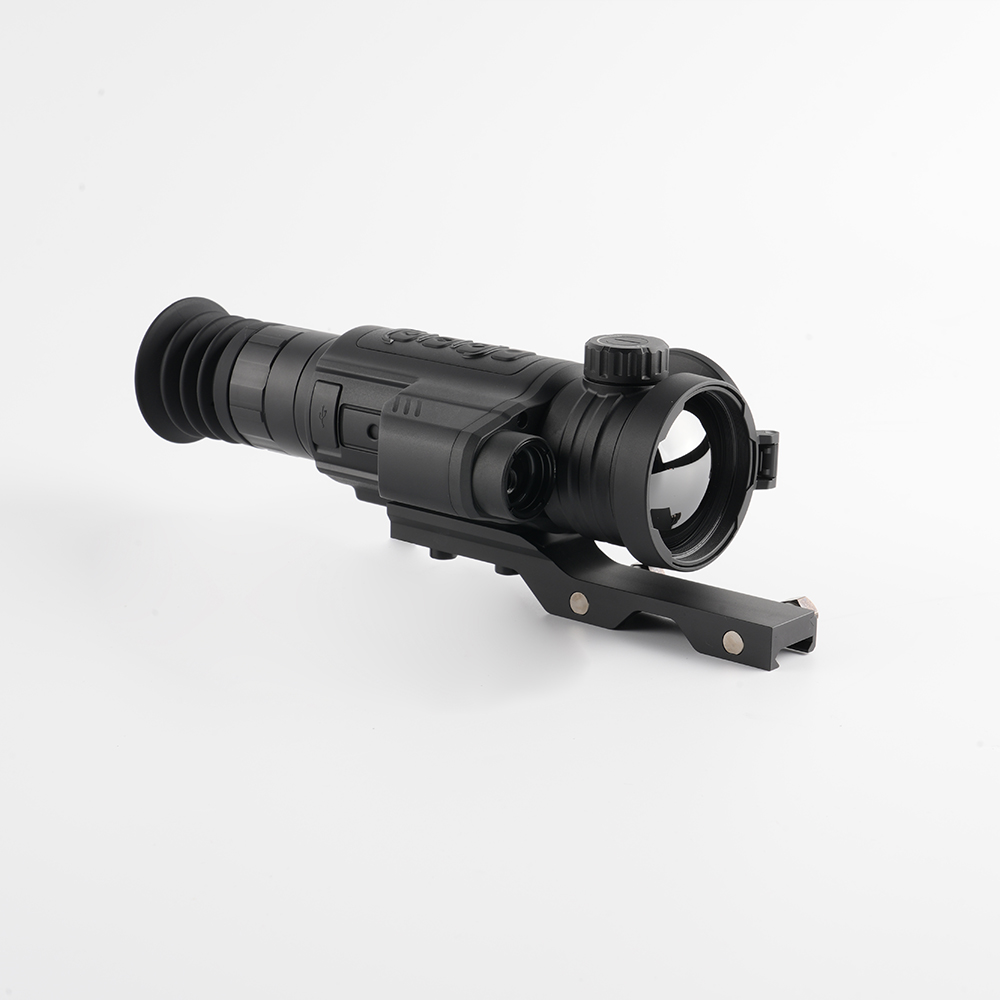

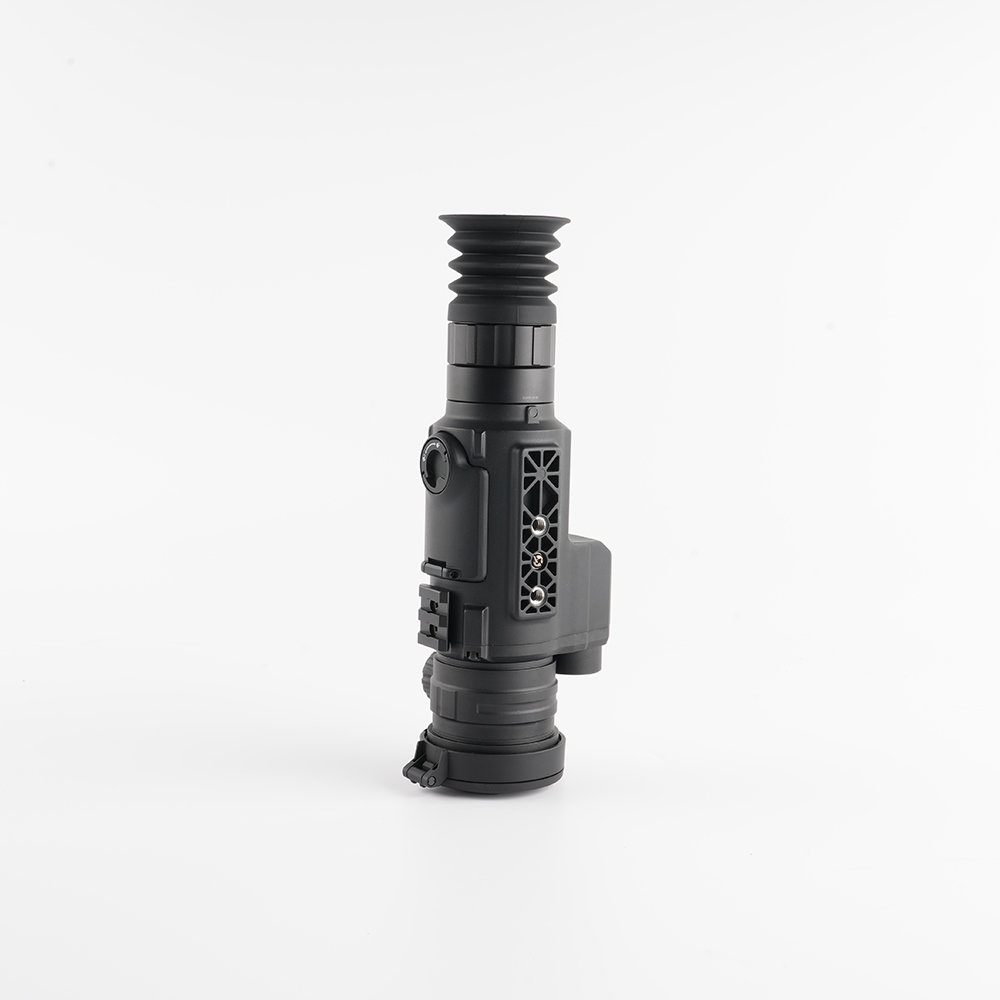

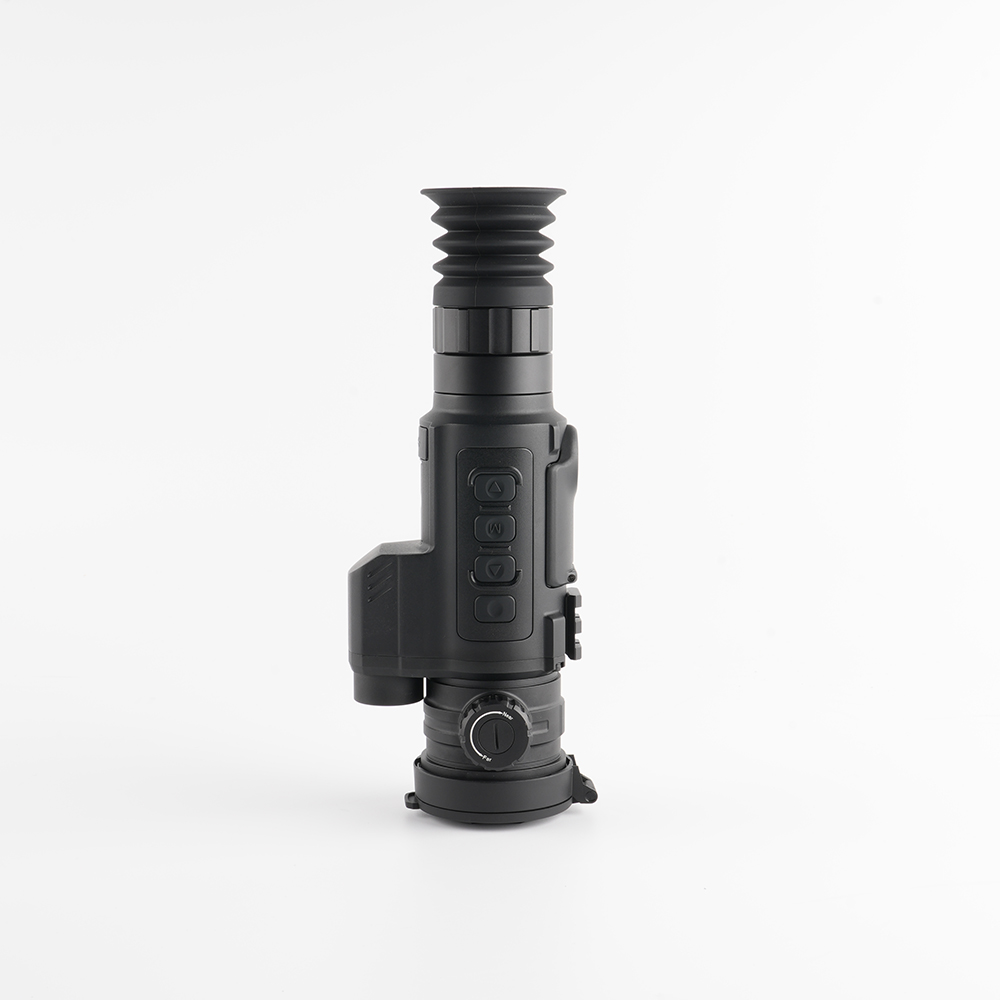

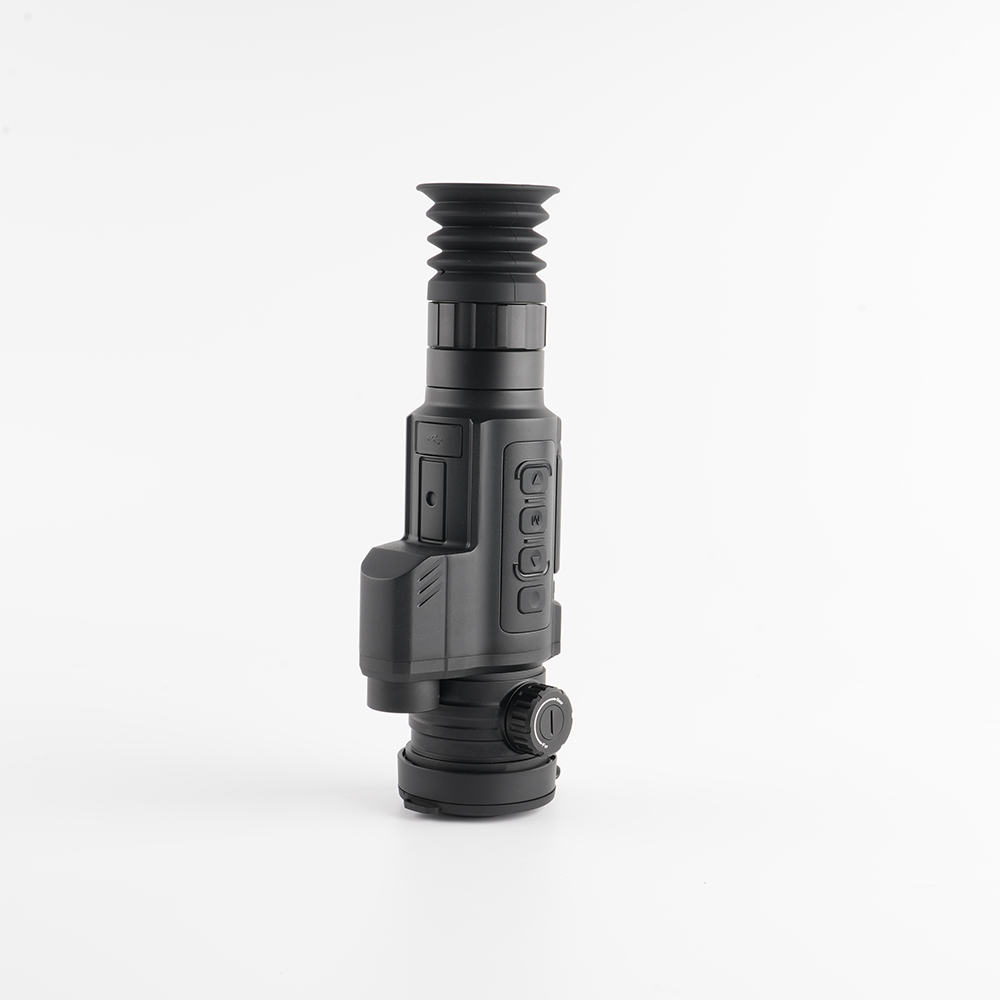

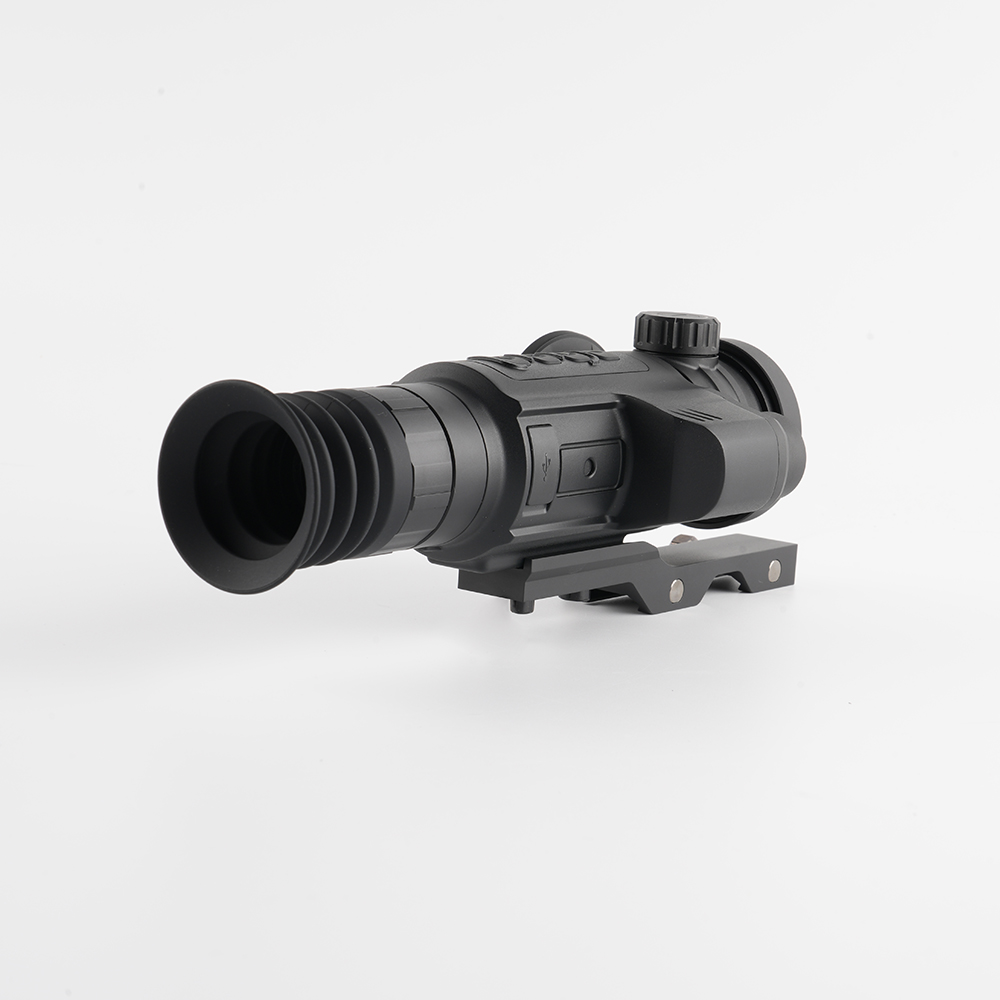

Longot LY650 LRF THERMAL SIGHTS
Monocular thermal sights aiming

LY650L

Monocular thermal sights aiming

Cold-resistant, low-temperature resistant and cost-effective 2500-meter detection distance
    ·0.39 inch OLED display resolution 1024X768
    ·NETD：35 mk（@25℃，F#=1.0）
    ·Scene mode: city, forest, stone and sky mode.
    ·3D digital noise reduction function
    ·Image detail enhancement function
    ·Lens focal length is 50mm.
    ·Wi-Fi
    ·Digital amplification
    ·False color mode switching
    ·Cross division function
    ·Capturing pictures and videos
    ·Battery anti-reverse connection protection
Application： Night Patrol Personal Security Search And Rescue Outdoor Adventure
SERVICE & SUPPORT   |    CONTACT US

Characteristics

adopts 0.39-inch OLED display screen resolution: handheld and ordinary gun aiming mode 1024x768 @p@ netd: 35mk (@ 25℃, F#=1.0)
Scene mode: city, forest, stone and sky mode.
16340 Battery x 4/1300mAh
A-type replaceable batteries supply power
Support type-c external power supply
Can run continuously for more than 4.5 hours.
adopts advanced passive infrared thermal imaging technology
with resolution of 640x512, and the high-sensitivity detector
supports 3D digital noise reduction function
supports image detail enhancement function
thermal imaging lens focal length is 50mm.

Demonstrate

Application

Specification



Model
LY650L
Detector TypeVOx
Resolution, Pixel640×512
Pixel Size, μm12 μm
NETD, mK≤35 mk
Frame Rate, Hz50 Hz
Optical Characteristics
Objective lens, mm50 mm
Magnification, x2.6x
Digital zoom, x1x、2x、4x、8x、16x
Min Focus Distance, M/Y5 m/5.468 yd
Exit pupil distance, mm45 mm
Exit pupil Diameter, mm6 mm
Field of View (H × V), degree8.78°×7.03°
Diopter, D-5D~+3D
Detection Distance, m (Target size: 1.7m×0.5m)2639 m
Detection Distance, m (Vehicle Target)6389 m
Rangefinder Characteristics
Wavelength, nm
905 nm
Measuring Range, M1000 m
Measurement accuracy, M

① 5m~400m，± 1m；② ＞400m，±(d*0.3％)

Electrical Characteristics
Display Type
OLED
Resolution, pixels1024×768
WiFi Frequency,GHz2.4GHz
Video/Photo fomatmp4/jpg
Built-in memory，GB16G-64G
Power Supply，V3~4.2V
Battery type*QTY/Capacity, mA16340 Battery x 4/1300mAh
External power supply，V5V 2A
Others Characteristics
Operating time (at t=22℃）, hours4.5hrs
Operating Temperature, ℃-30℃~+50℃
Storage Temperature, ℃-40℃~+70℃
Body materialAluminium alloy
Degree of protection, IP code (IEC60529)IP67
Seismic coefficient, joules
750 g/ms
Dimension（L*W*H), mm/inch

238 mm×90 mm×67 mm/

9.37 in×3.54 in×2.63 in

Weight(without battery), g/oz773 g/27.27 oz
