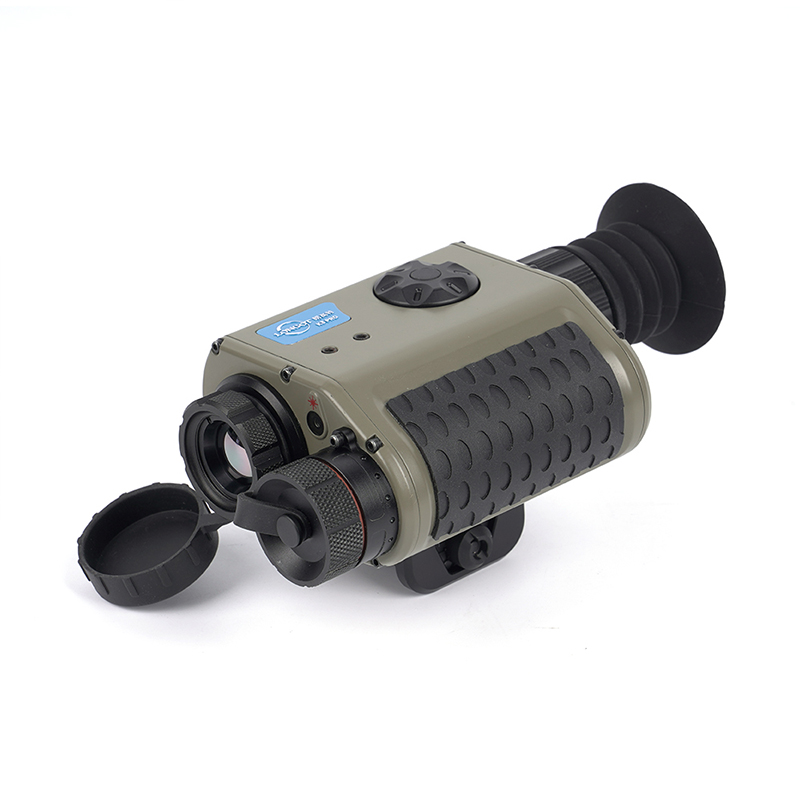

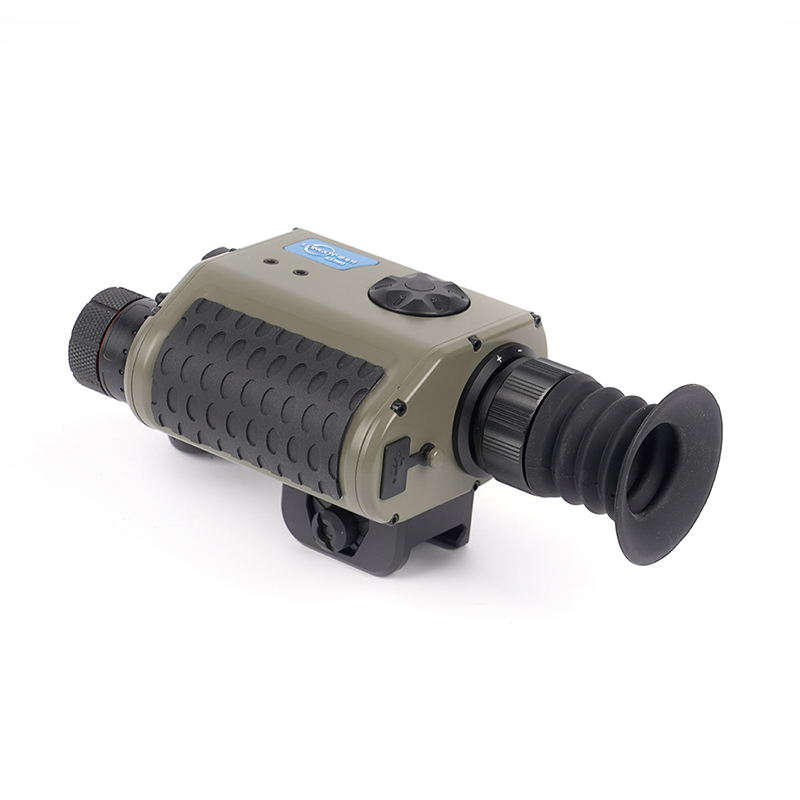

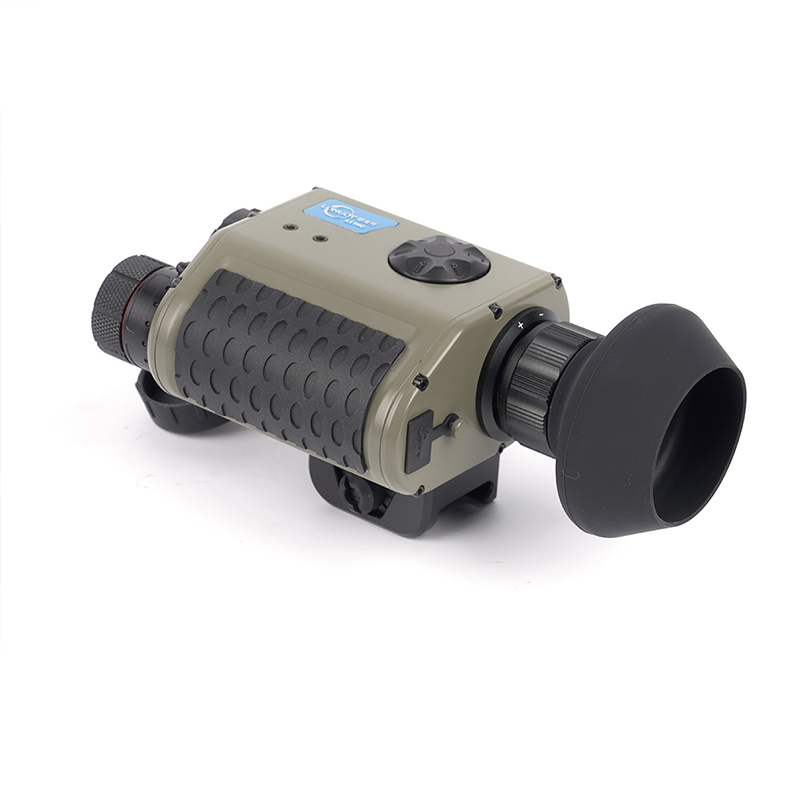

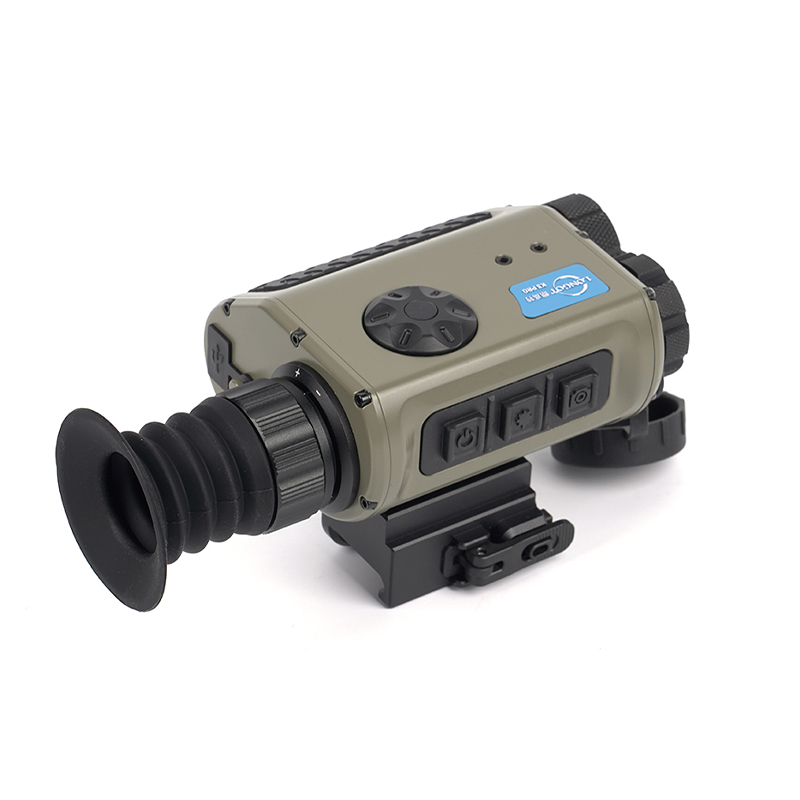

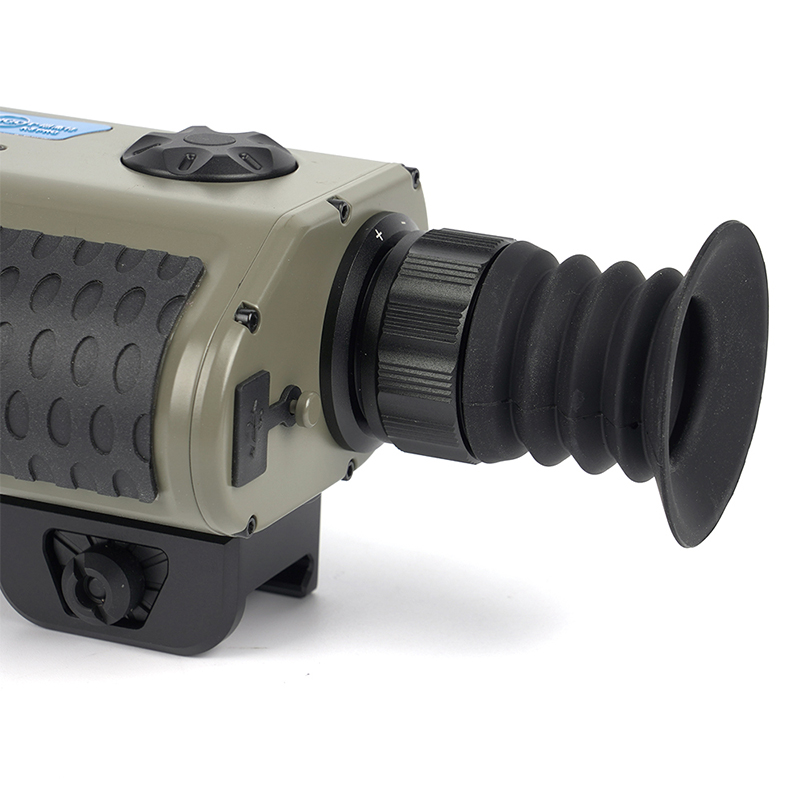

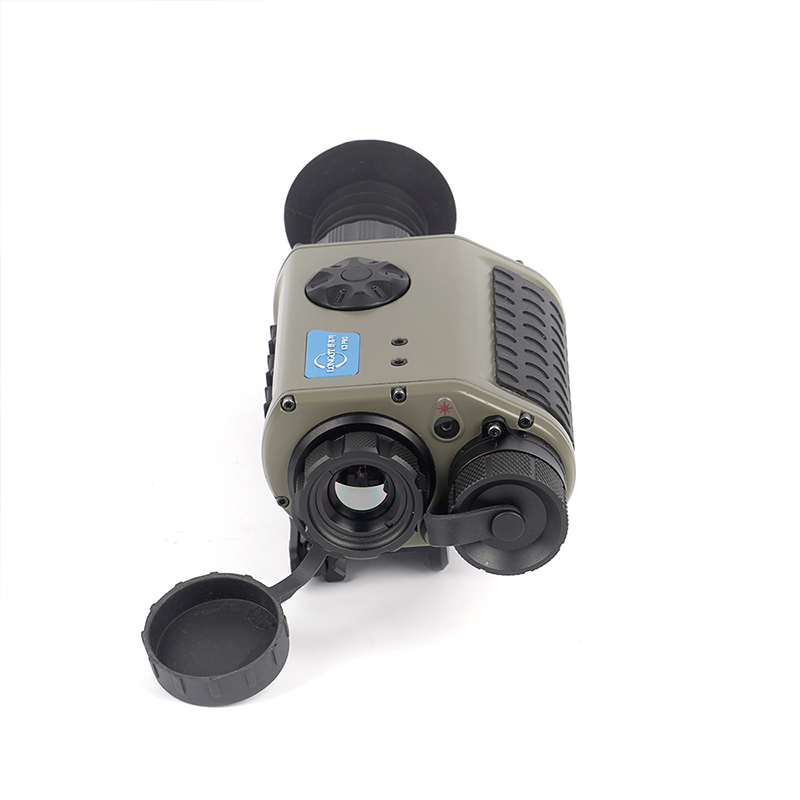

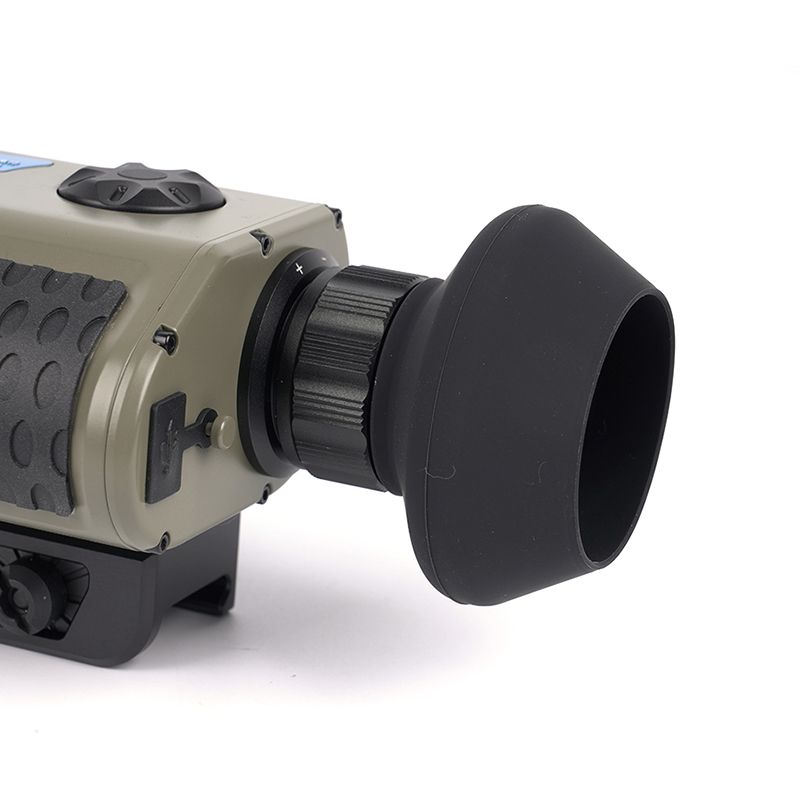

Multifunctional thermal imager

LGT K3 Pro

Multifunctional thermal imager

Thermal Imager / Thermal Sights / Thermal Clip-on / Thermal With Headmount
    ·The pixel size is 12 μm.
    ·Resolution 384x288
    ·1024x768 OLED display screen
    ·16mm lens F1.0 aperture
    ·16.3°x12.3° field of view
    ·6 image modes
    ·4 scene modes
    ·Support for electronic compasses
    ·Support photo and video &Wi-Fi
    ·8h strong battery life

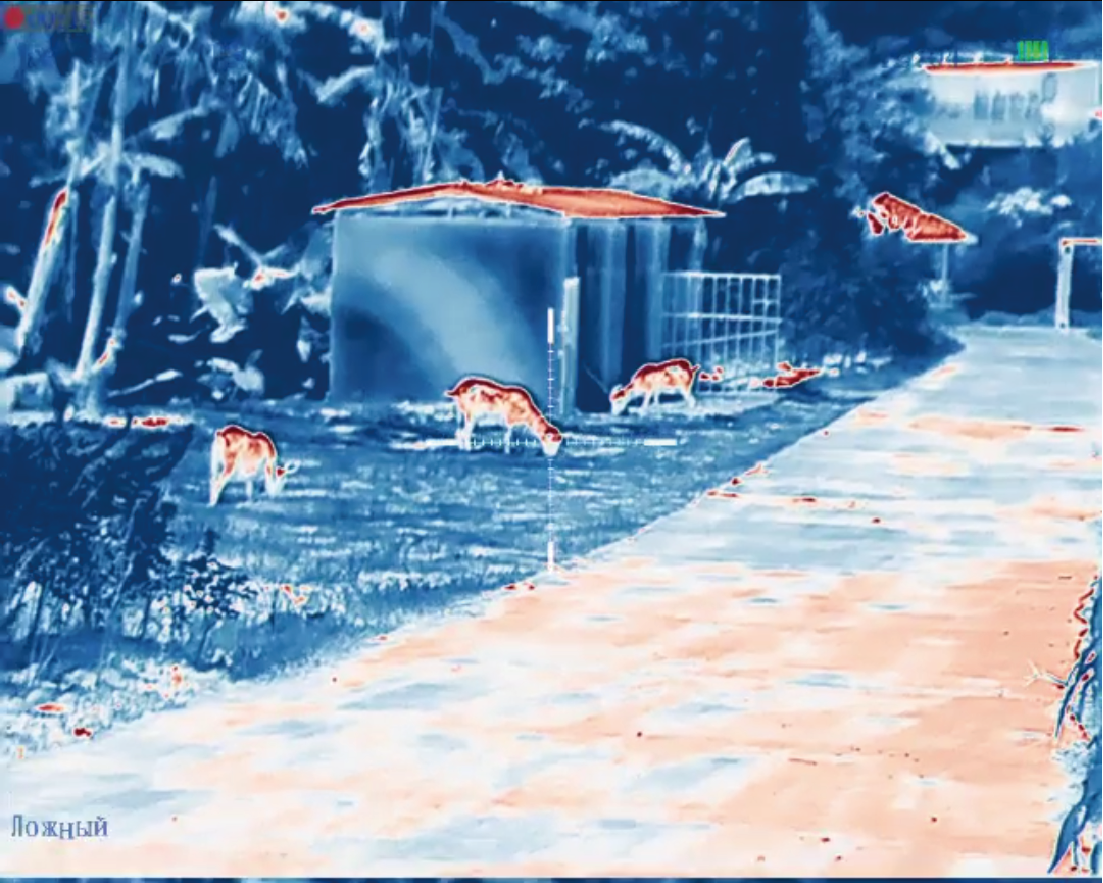

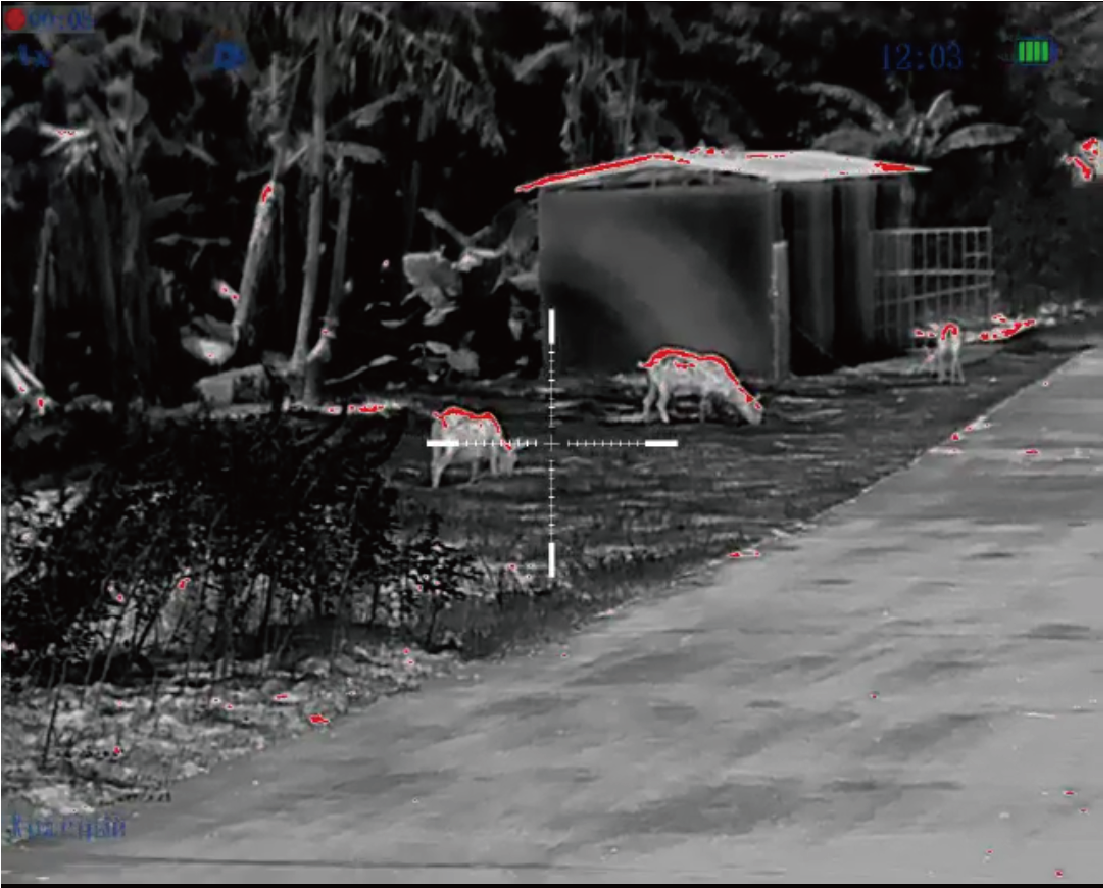

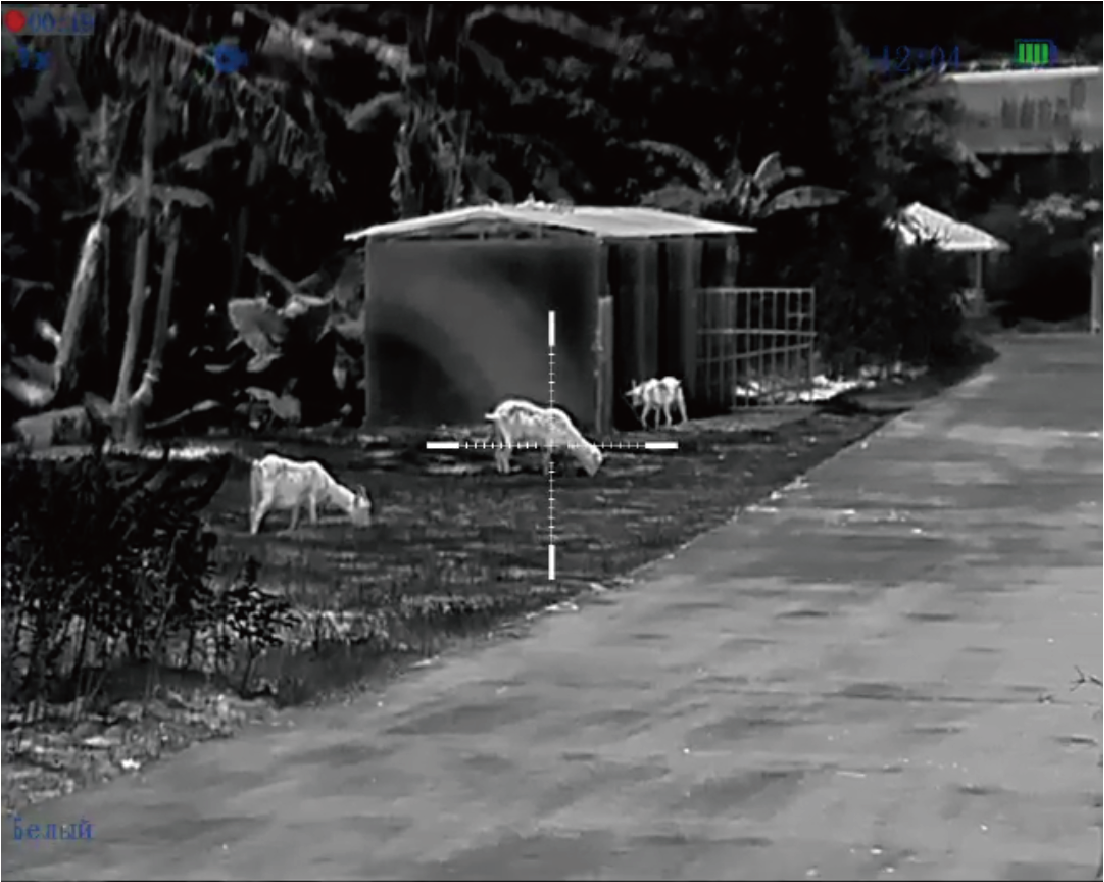

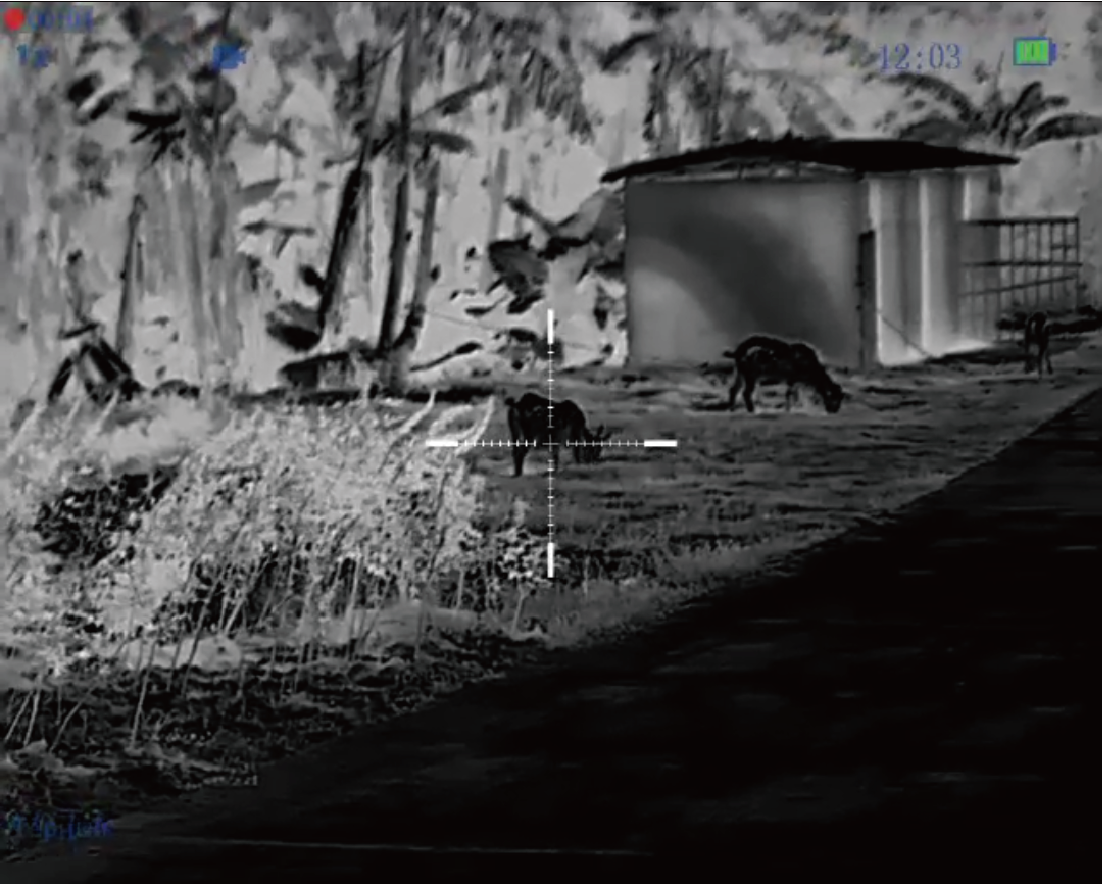

    ·7 differentiation patterns
    ·Support for motion sensors
    ·Support for laser indication
    ·Detection distance is 1500m.
Application： Night Patrol Personal Security Search And Rescue Outdoor Adventure
SERVICE & SUPPORT   |    CONTACT US

Characteristics

Handheld use does not need to install other accessories, it can be used directly after installing the battery, and the factory defaults to handheld use.
Head mounted use After installing the battery, you need to install the adapter bracket (optional).
equipment. When the integrated thermal sight is used, after the battery is installed, it is necessary to install the picatinny rail adapter on the equipment, and then install the equipment on the picatinny rail.
device as the front tandem thermal sight, after installing the battery, then install the device in front of the white light sight.

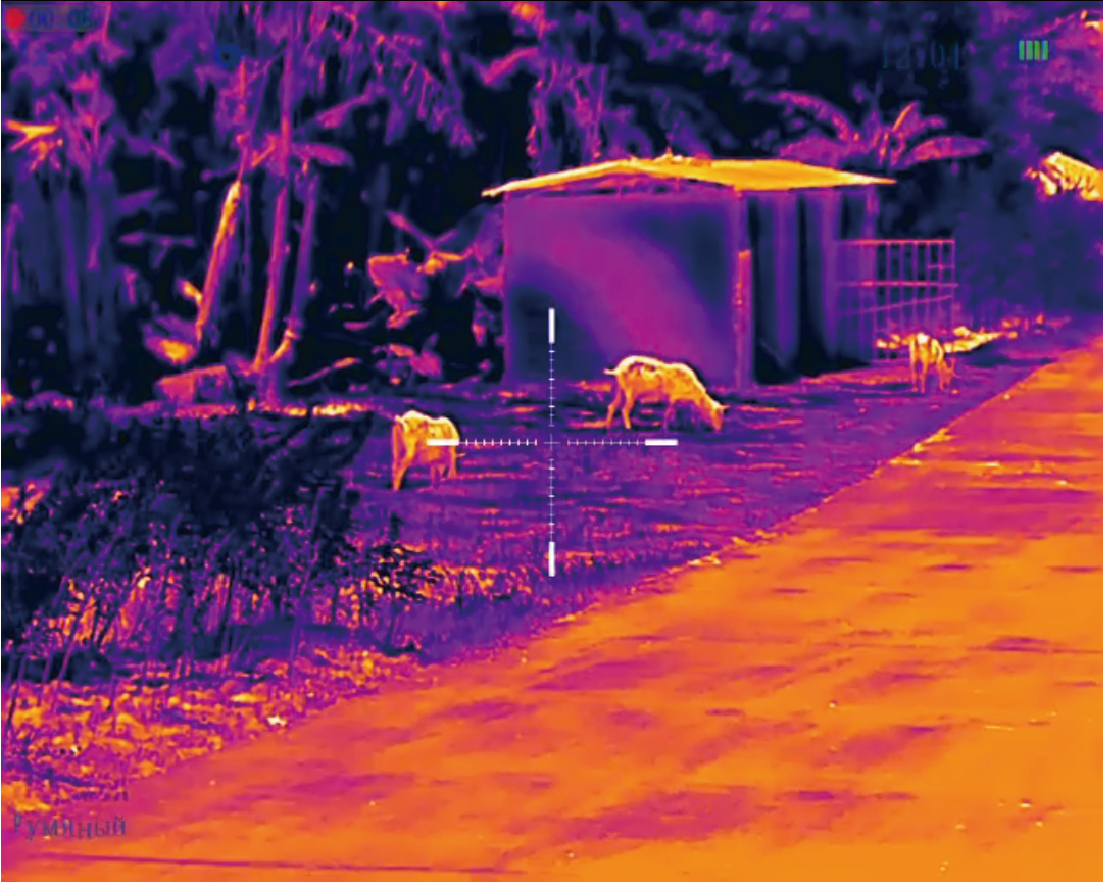

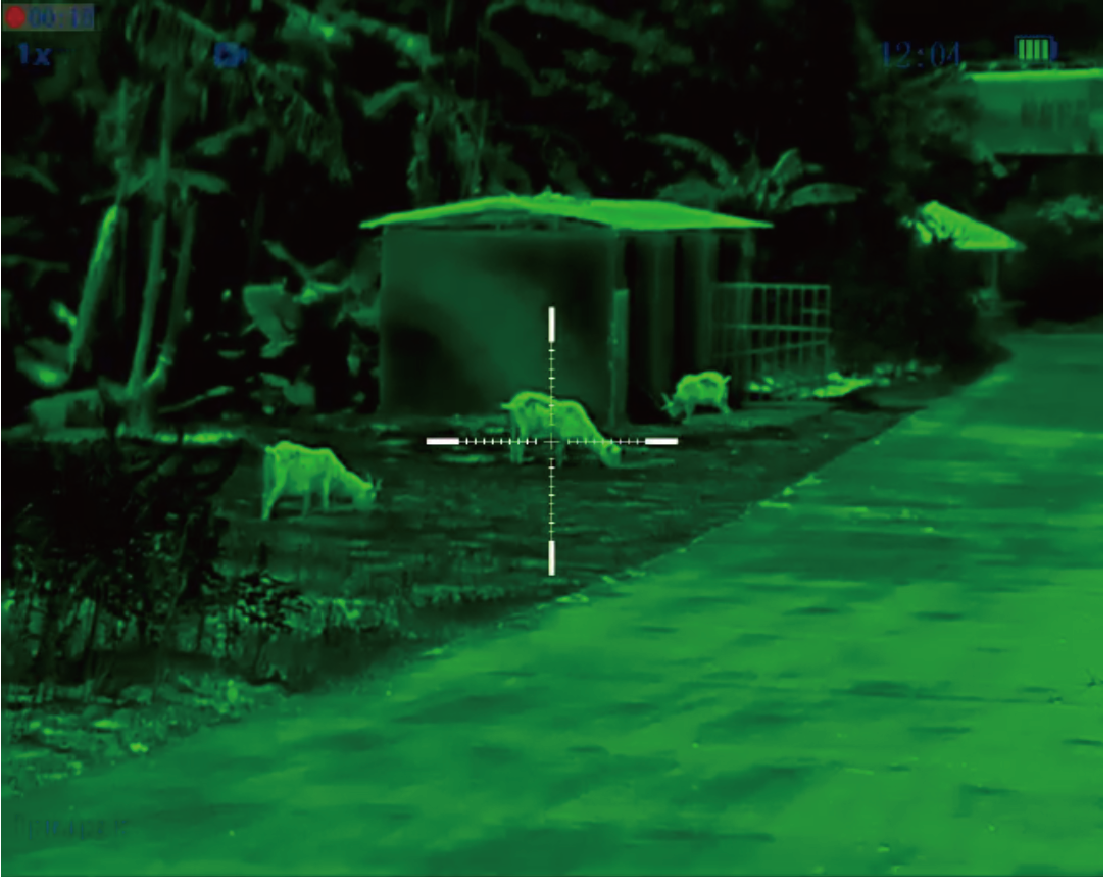

Demonstrate

Application

Specification


Model
K3 Pro
Detector TypeVOX
Resolution, Pixel
384×288
Pixel Size, μm12μm
NETD, mK≥50mk
Frame Rate, Hz≤30Hz
Optical Characteristics
Objective lens, mm
16mm
Magnification, x1×
Digital zoom, x1x、2x、3x、4x
Min Focus Distance, M/Y5m/5.468yd
Exit pupil distance, mm20 mm
Exit pupil Diameter, mm12 mm
Field of View (H × V), degree16.3°×12.3°
Diopter, D-5D~+2D
Identify distances, m (Target size: 1.7m×0.5m)393 m
Electrical Characteristics
Display Type
OLED
Resolution, pixels1024×768
WiFi Frequency,GHz2.4GHz
Video/Photo fomatmp4/jpg
Built-in memory，GB64 G
Power Supply，V3~4.2V
Battery type*QTY/Capacity, mA18650 Battery × 1/3200mAh
External power supply，V5V2A
Others Characteristics
Operating time (at t=22℃）, hours
>8hrs
Storage temperature, ℃/℉-30℃~+60℃
Body materialAluminium alloy
Degree of protection, IP code (IEC60529)IP67
Seismic coefficient, joules≤6000J
Dimension（L*W*H), mm/inch

125mm×72mm×44mm/ 4.92in×2.83in×1.73in

Weight(without battery), g/oz330g/11.64oz
