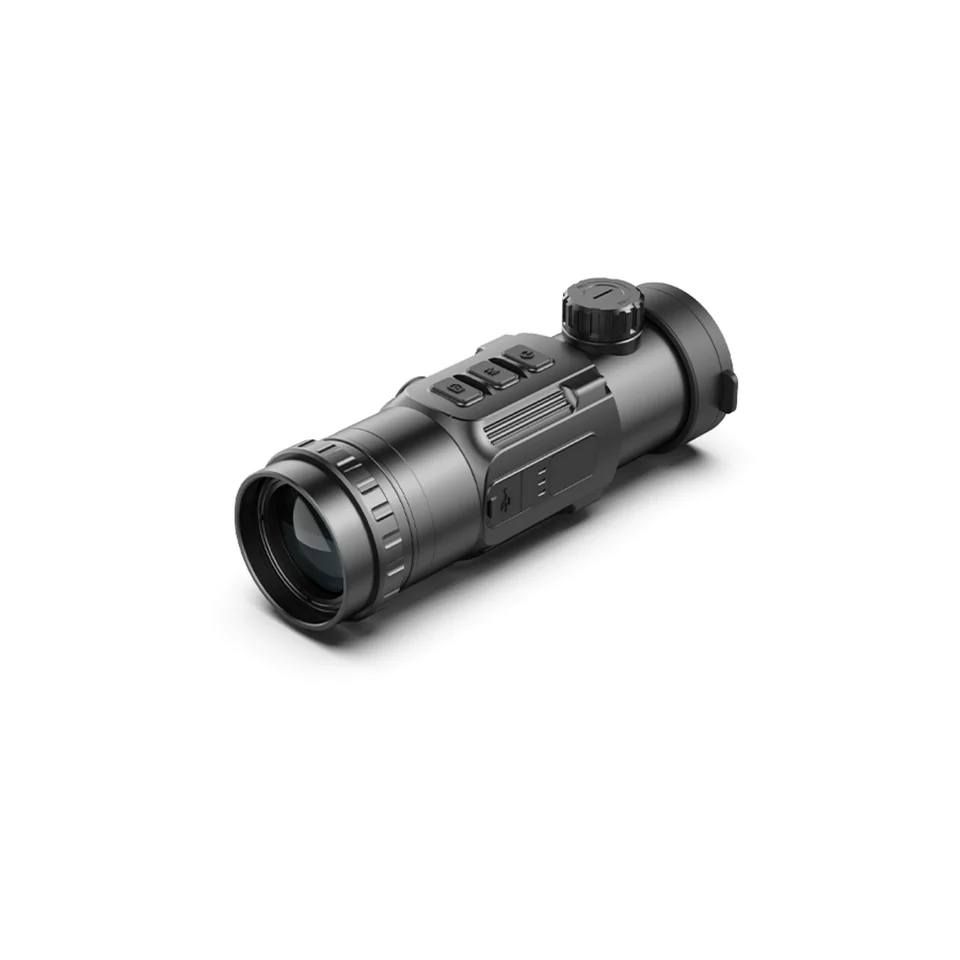

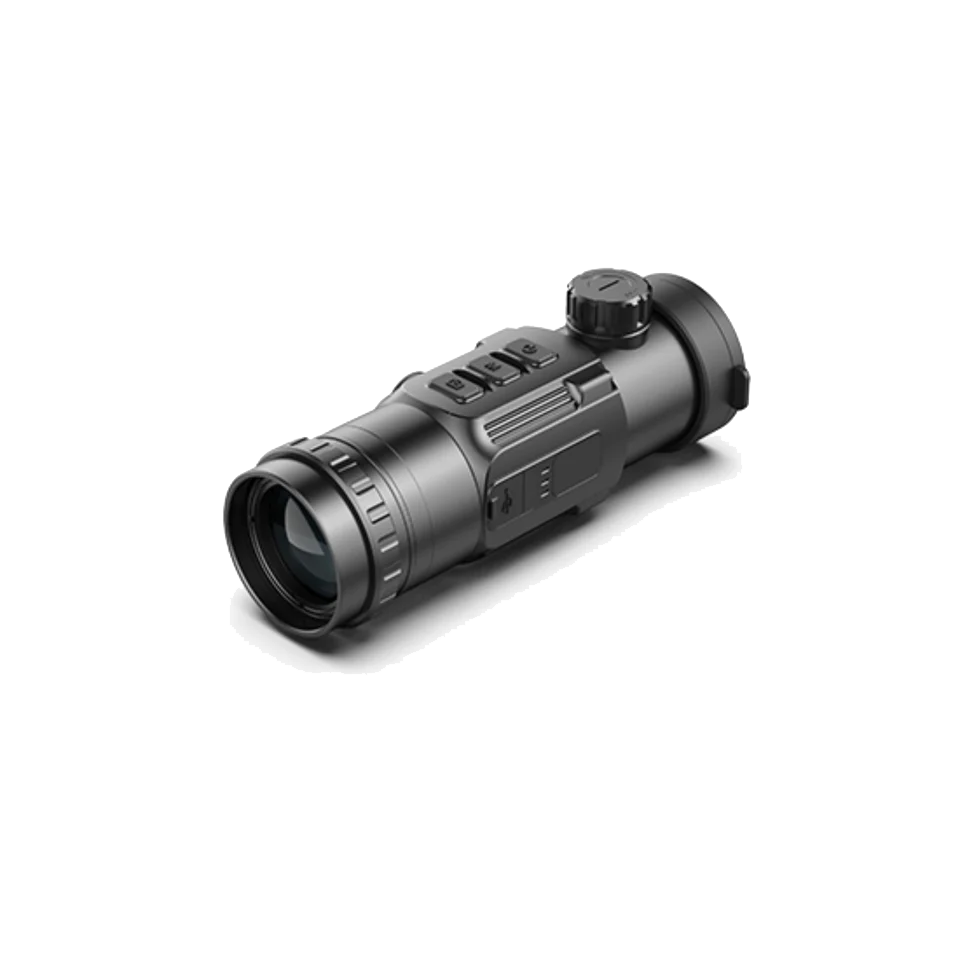

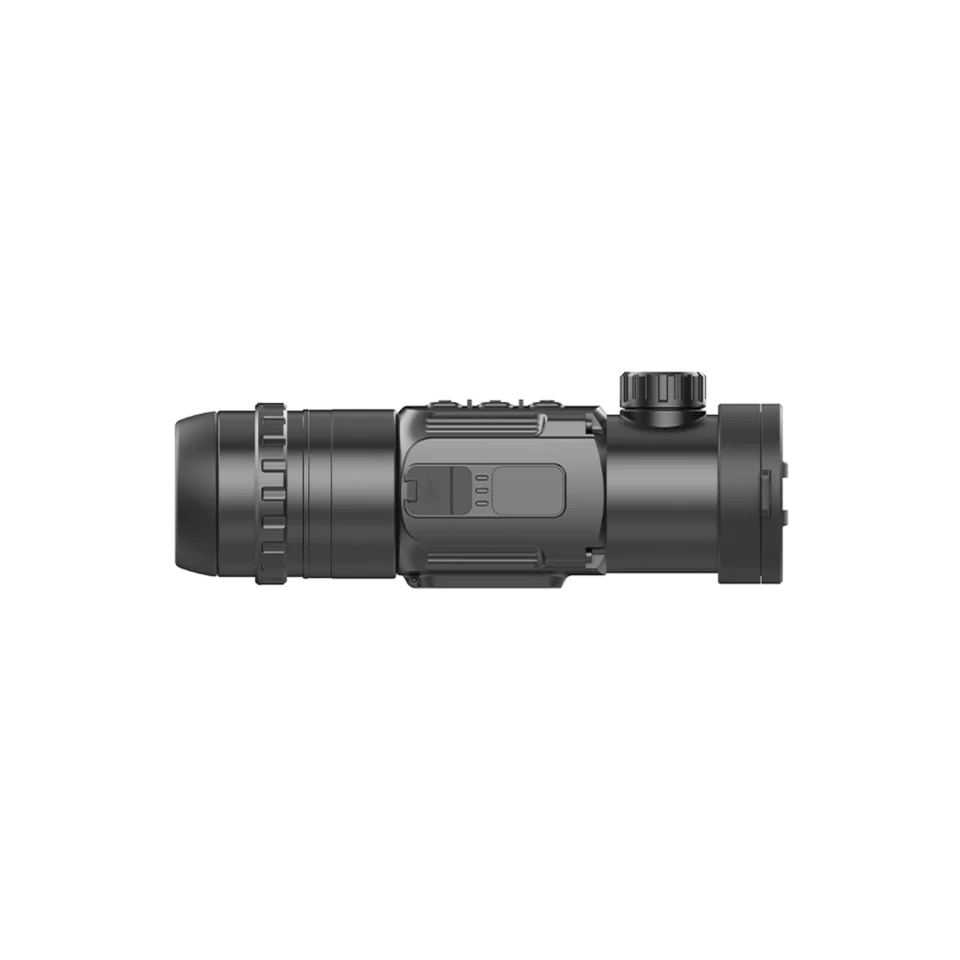

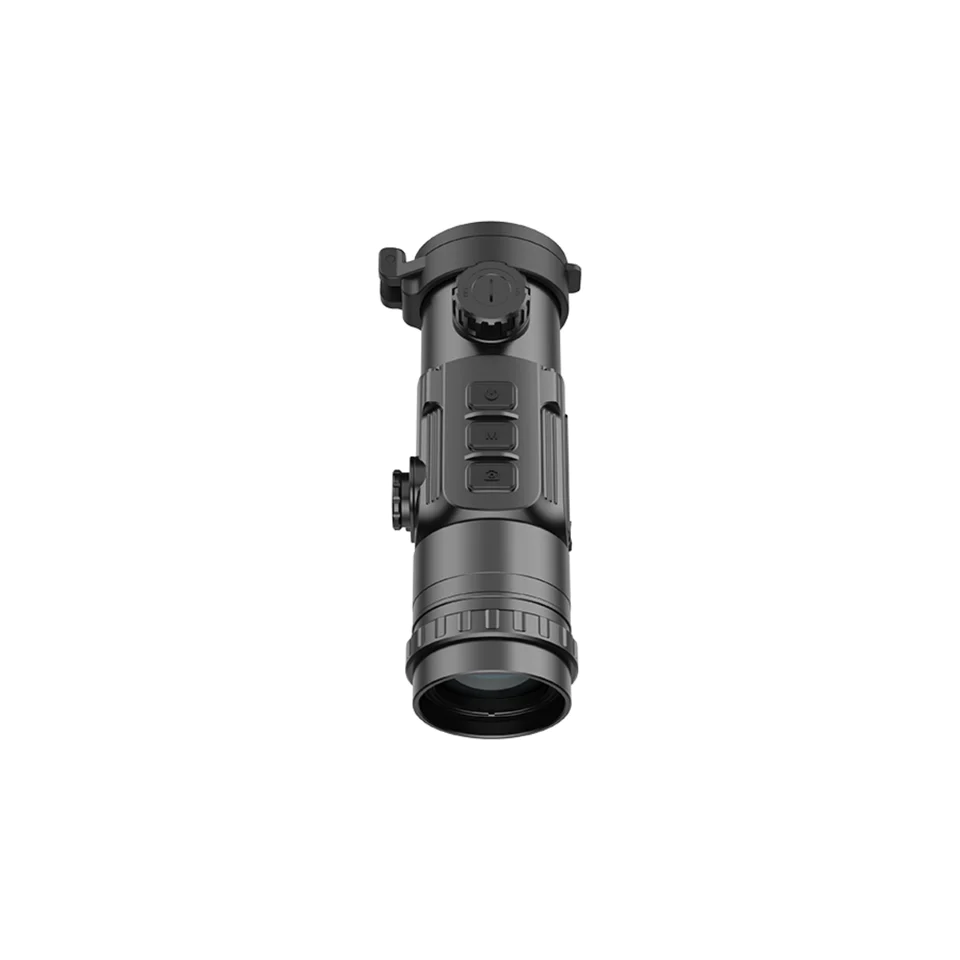

LGT LY050


Thermal imaging transfer aiming


50 mm lens, 640 resolution, 12μm detection movement can extend the battery compartment.

    ● Quick switching between front thermal imager and hand-held thermal imager;
    ● Quickly install and remove hand-held eyepiece and front eyepiece;
    ● Long detection distance;
    ● 1024×768 high-resolution OLED display screen;
    ● Bluetooth remote control;
    Four image modes-white heat, black heat, red heat and false color;
    ● Image electronic magnification: ×1, ×2 and × 4;
    ●Type-C interface power supply and data transmission;
    ● PAL analog video output;
    ● IP66 protection grade;
    ● Compact structure;
    ● Light weight and good impact resistance.

Application: Personal security Search and rescue Outdoor exploration Night patrol



Characteristics

In the normal display mode, short press the menu key to switch the sequence of "No menu-screen brightness-image mode-electronic zoom-exit the shortcut menu", and short press the power key and the correction key to adjust the parameters of each function. Quick menu interface. ● Screen brightness: there are four brightness levels: 1~4; ● Image mode: W (white heat), B (black heat), R (red heat) and C (false color); ● Electron zoom: the magnification is ×1, ×2 and ×4.
normal display mode, press and hold the menu key 3s to enter the advanced menu setting interface, and from top to bottom, there are six functional options, namely, Ultraclear mode, Bluetooth, video output, battery type, blind pixel correction and factory setting recovery.
In the advanced menu, rotate the machine around the optical axis 360 for three times, and a three-axis coordinate system will appear in the center of the image, enter the compass calibration interface, rotate the machine by using the decahedral calibration method, and automatically exit and complete the compass calibration after 30s. During calibration, press the power button briefly to exit the compass calibration interface at any time.
When LGT LY050 is installed as an infrared expansion component on a white light sight, if the cross of the white light sight is not in the center of the infrared image, you can use the image calibration function to translate the infrared image to ensure the position consistency between the white light image and the infrared image.

Application

Specification


Model

LY050

Detector

VOx Uncooled

Resolution

640x512

Pixel Size

12μm

NETD

≤50mk

Frame Rate

50Hz

Objective Lens

50mm

Field of View

8.8°×7.0°

Magnification

x1/x2/x4

Detection Range

(Target size:1.7m×1.2m)

2597m

Display

OLED

Resolution

1024×768

Battery

CR123×2/16650x2

内置存储

32GB

Max. Battery Life

4h/7h(Extended battery compartment)

USB Interface

Type-C

Video Output

PAL(RCA )

External Power

Type-C

加速度计

Remote Control

Bluetooth

LONGOT APP

IP Rating

IP66

Weight (without batteries)

<590g

Dimension

175mm×74mm×68mm

Adapter Ring

M52×0.75
