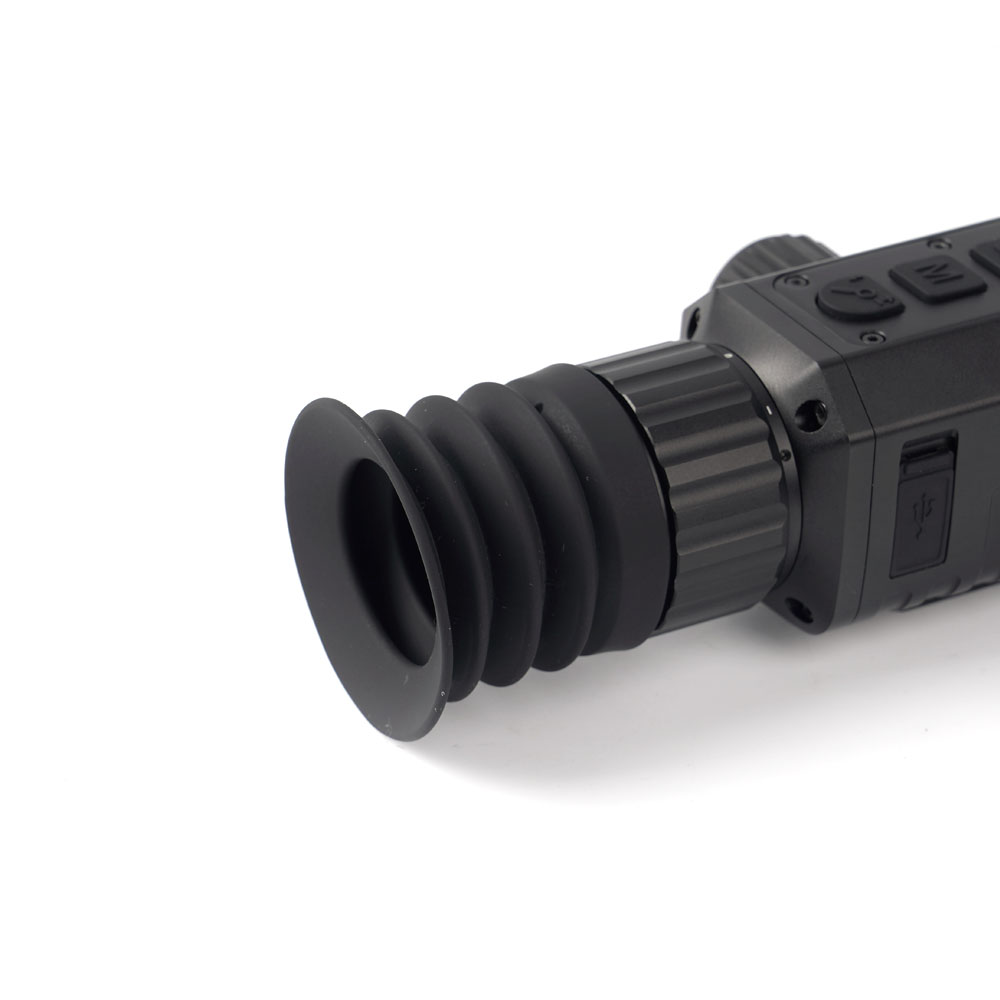

Longot KB225 | Thermal imaging sight
Thermal imaging sight

KB225

Thermal imaging sight

The KB series is a multi-functional and highly adaptable thermal imaging sight.
    ·12μm thermal imaging detector
    · High-definition quality images
    · Waterproof level IP67
    · One-click calibration
    · Supports microphone
    · Eye-protecting scene mode
    · Supports recoil activation for video recording
    · Supports dual 18500/18650 batteries
SERVICE & SUPPORT   |    CONTACT US

Characteristics

KB adopts high-pixel sensors and 12μm ≤20mK NETD thermal sensitivity, presenting outstanding image clarity even in low visibility environments. In the comparison test with the same high-end models, KB performed better in foggy and low visibility conditions, providing clearer and more detailed images.
KB is equipped with an automatic zeroing function, which can automatically calibrate the aiming system according to environmental changes to ensure consistent accuracy. This function does not require manual adjustment, significantly saving time and effort. It enables hunters and shooters to achieve stable and reliable shooting performance whether hunting in the wild or training at the shooting range.
The KB series is compatible with dual types of batteries (18500 and 18650), among which the 18650 battery can provide up to 7 hours of battery life. Supports flexible battery replacement to ensure continuous operation of the device, allowing you to focus on your goals without worrying about battery power issues.
The brand-new one-click gun calibration technology of the KB series makes precision never so simple. Easy to operate, accurate and error-free, every aim is full of confidence.

Specification


Model
KB225
Detector TypeVOX
Resolution, Pixel
256×192
Pixel Size, μm12 μm
NETD, mK≤40 mk
Frame Rate, Hz50 Hz
Optical Characteristics
Objective lens, mm
25 mm
Magnification, x3.6×
Digital zoom, x1x、2x、3x、4x
Min Focus Distance, M5 m
Exit pupil distance, mm48 mm
Exit pupil Diameter, mm6 mm
Field of View (H × V), degree7°×5.3°
Diopter, D-4D~+4D
Detection Range, m (Target size: 1.7m×0.5m)1000 m
Detection Range, m (Verhicle)1800 m
Electrical Characteristics
Display Type
OLED
Resolution, pixels1024×768
WiFi Frequency,GHz2.4 GHz
Video/Photo fomatavi/jpg
Built-in memory，GB32 G
Power Supply，V3~4.2V
Battery type*QTY/Capacity, mA

18500 Battery x 1/ 18650 Batteryx1

2300mAh / 3200mAh

External power supply，V5V2A
Others Characteristics
Operating time (at t=22℃）, hours

≥7hrs / ≥10hrs

Operation  temperature, ℃-20℃~+50℃
Storage temperature, ℃-40℃~+60℃
Body materialAluminium alloy
Degree of protection, IP code (IEC60529)IP67
Seismic coefficient, joules900g/ms
Dimension（L*W*H), mm/inch

205mm*73mm*56mm/8.07in*2.87in*2.2in

Weight(without battery), g/oz465g/16.4oz
