Longot TR650 LRF | Thermal imaging sight
High-end thermal imaging aiming

TR650 LRF

High-end thermal imaging aiming

1200-meter ballistic laser rangefinder
    ·≤20 mK sensitivity
    ·1200-yard integrated, high-precision laser rangefinder
    ·Stepped digital zoom from 1.0x-4.0x
    ·Magnesium alloy housing
    ·Quick-change rechargeable battery pack
    ·Maximum detection range 2400 yards
    ·HD 2560x2560 AMOLED display
    ·High frame frequency: 60Hz
    ·Supports multiple charging options, including a durablemagnetic charging cable
    ·Multiple zero profiles and ranges
    ·Built-in gravity sensor
SERVICE & SUPPORT   |    CONTACT US

Characteristics

TR650L is equipped with an excellent 640 resolution sensor, redefining the clarity of thermal imaging. Every detail is vividly lifelike, providing a clearer and more acute visual experience in any environment

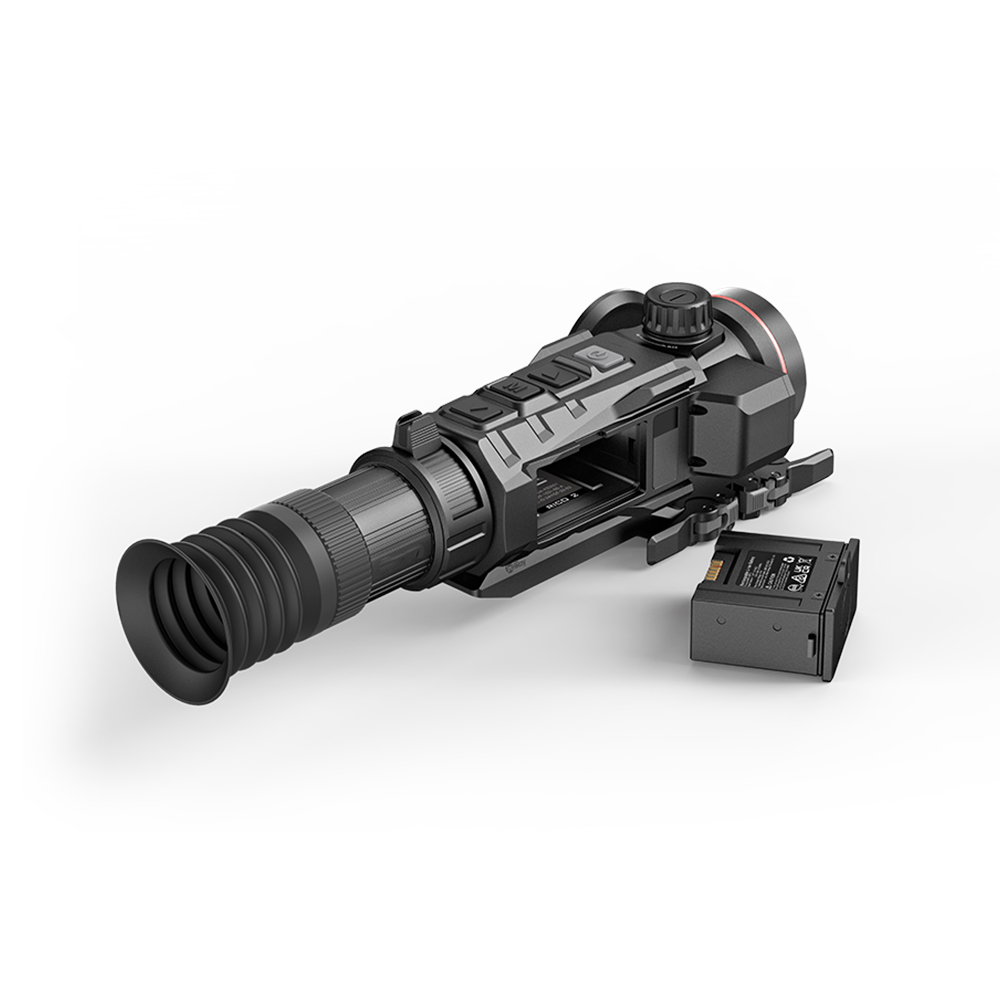

The TR650L rifle scope comes with two long-lasting rechargeablelithium-ion lBP-5 battery packs, which allow for 5+ hours of operationeach.The lBP-5 battery packs use a cam-locking mechanism toensure quick and secure battery changes in the field. Fully chargethe battery packs before using the TR650L for the first time.

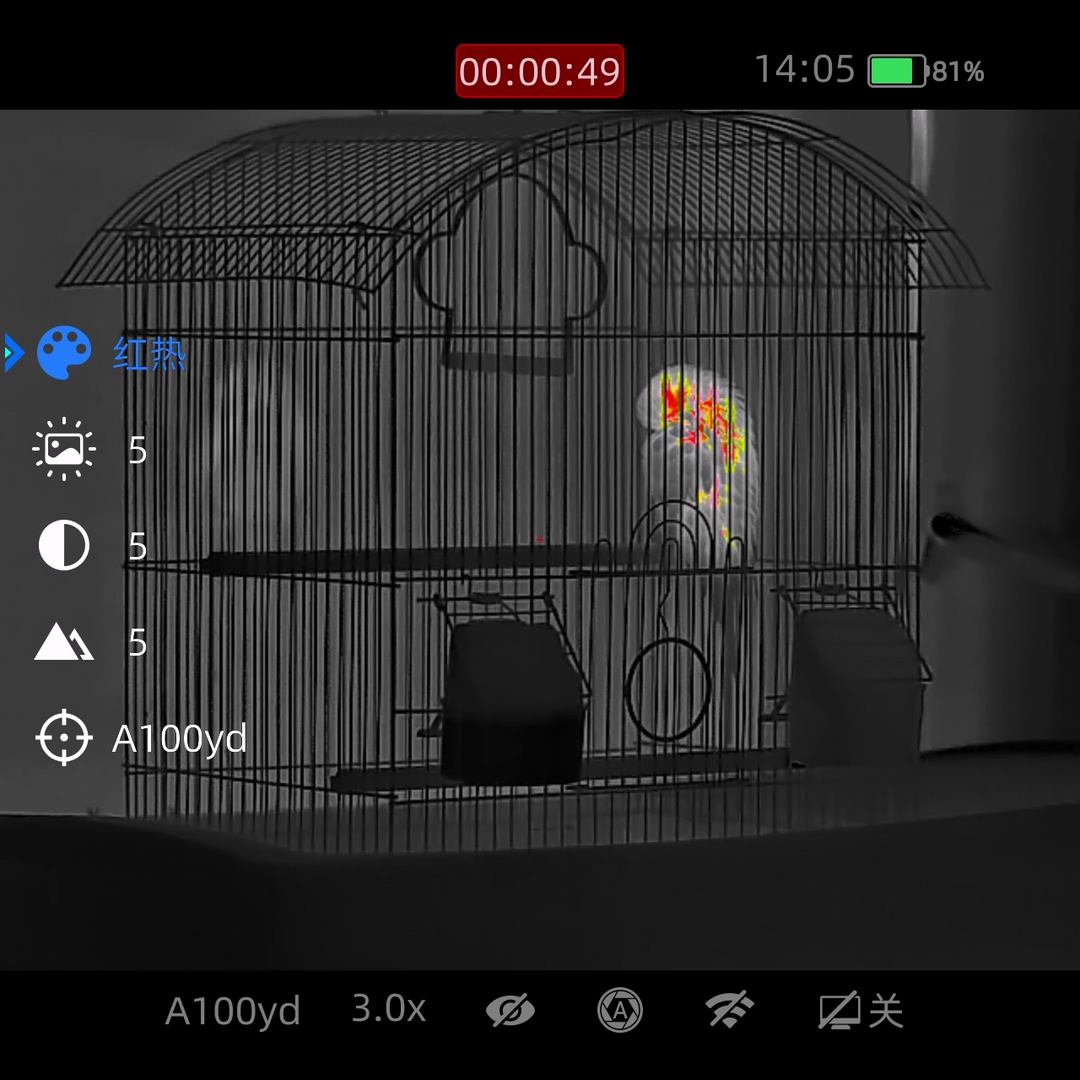

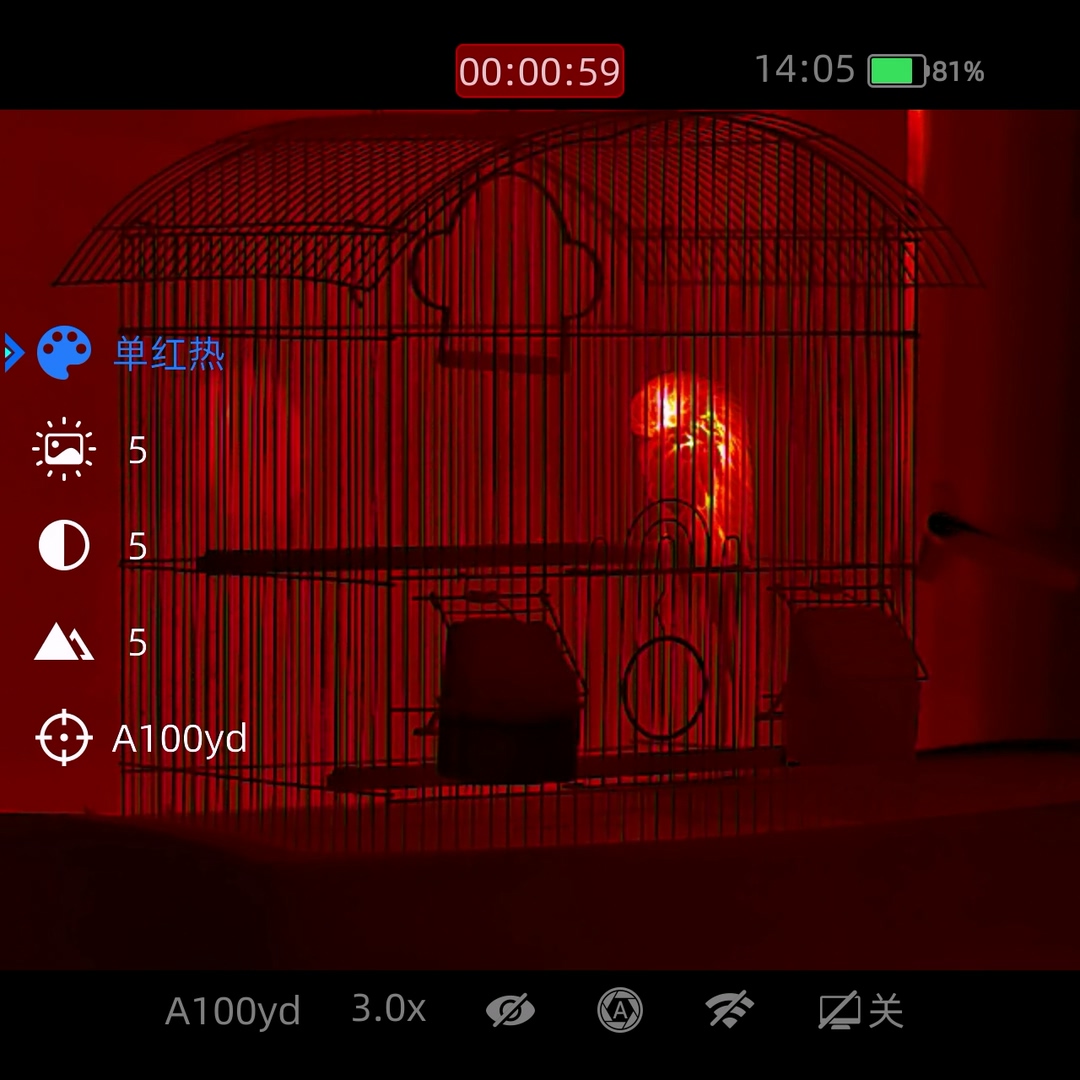

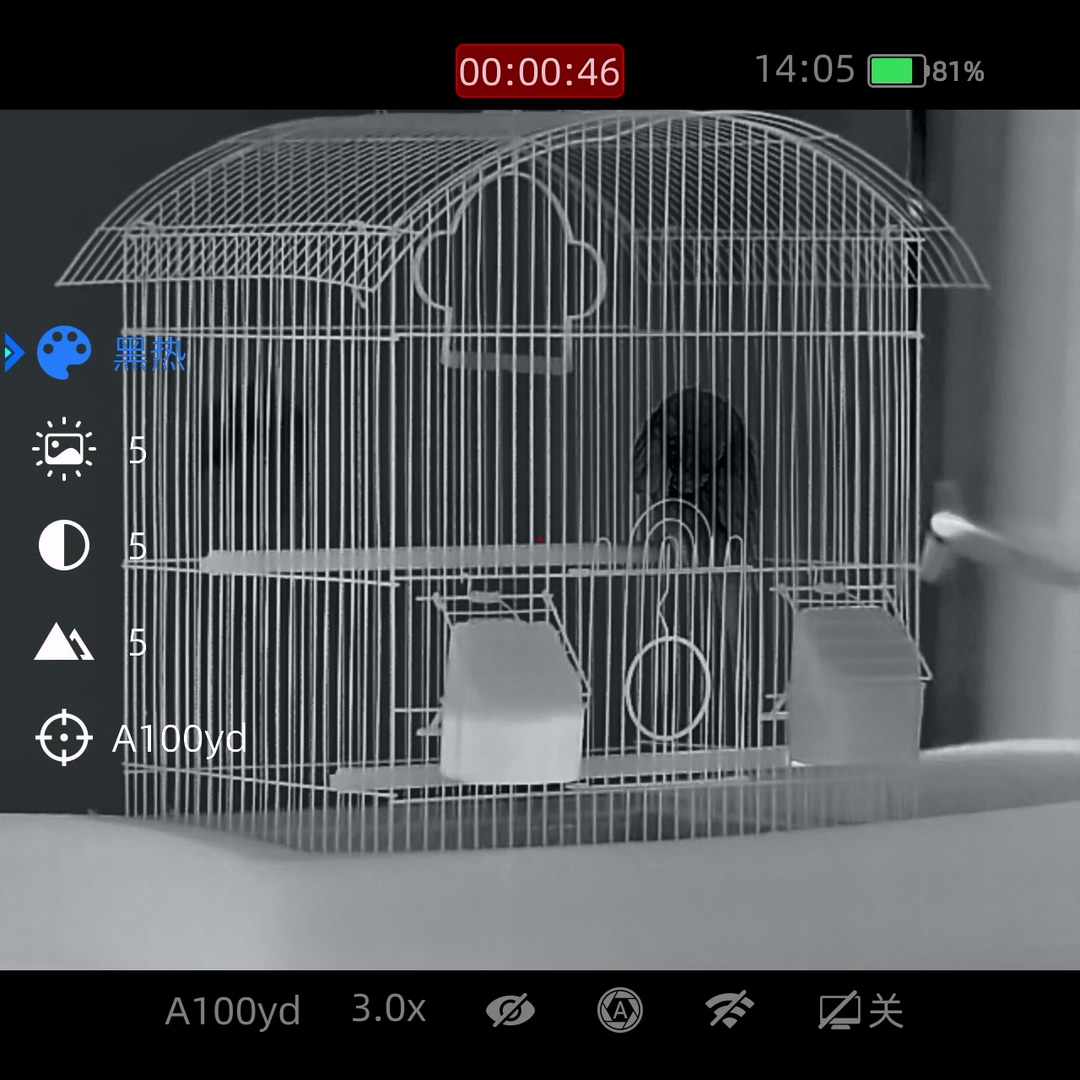

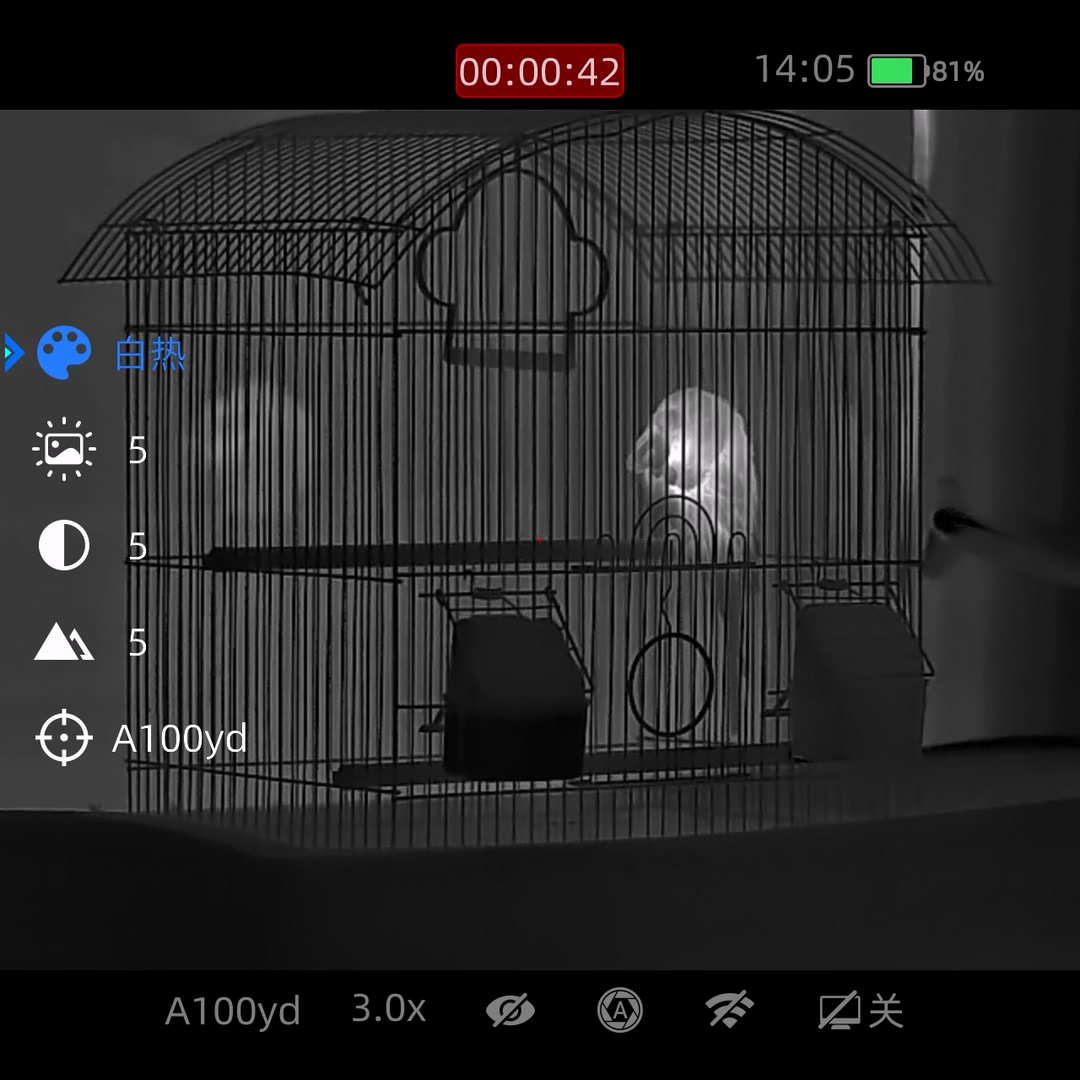

TheTR650L is equipped with video recording and image captureAll videos and photos are automatically saved to the built-in 32 GBmemory storage.

Specification


Model
TR650 LRF
Detector TypeVOX
Resolution, Pixel
640×512
Pixel Size, μm12 μm
NETD, mK≤20mk
Frame Rate, Hz60 hz
Optical Characteristics
Objective lens, mm
50 mm f/1.0
Magnification, x3x
Digital zoom, x3x-24x stepless zoom, step 0.1x-0.3x
Min Focus Distance, M5 m
Exit pupil distance, mm60 mm
Exit pupil Diameter, mm23 mm
Field of View (H × V), degree8.8°×6.6°
Diopter, D±3D
Detection Range, m (Target size: 1.7m×0.5m)2597 m
Detection Range, m (Verhicle)3514 m
Rangefinder Characteristics
Wavelength,nm905nm
Measuring Range,M1200m
Measurement accuracy,m±1m
Electrical Characteristics
Display Type
1.03-inch AMOLED
Resolution, pixels2560×2560
WiFi Frequency,GHz2.4 GHz
Video/Photo fomatMP4/JPG
Built-in memory，GB32 GB
Power Supply，V3~4.2V
Battery type*QTY/Capacity, mA

Replaceable lithium battery, 4400mAh

External power supply，V5V2A
Others Characteristics
Operating time (at t=22℃）, hours

≥5.5h

Operation  temperature, ℃-20℃~+50℃
Storage temperature, ℃-40℃~+60℃
Body materialMagnesium-aluminum alloy
Degree of protection, IP code (IEC60529)IP67
Seismic coefficient, joules1000g/s²（300 Win./7mm Mag）
Dimension（L*W*H), mm/inch

296mm*78mm*76mm11.65in*3.07in*2.99in

Weight(without battery), g/oz926g/32.66oz
