Specification

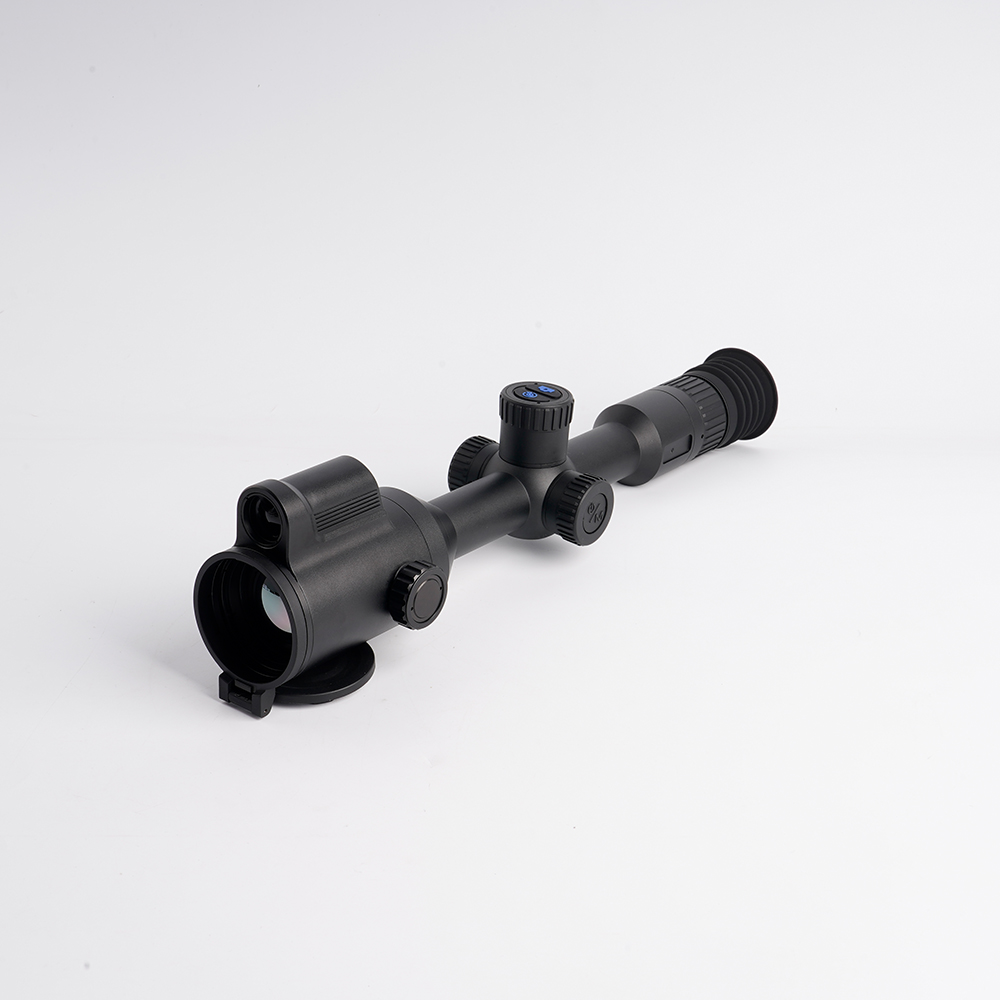

| Model | TB650 LRF |
| Detector Type | VOX |
| Resolution, Pixel | 640×512 |
| Pixel Size, μm | 12 μm |
| NETD, mK | ≤20mk |
| Frame Rate, Hz | 50 Hz |
| Optical Characteristics | |
| Objective lens, mm | 50 mm |
| Magnification, x | 2.8× |
| Digital zoom, x | 1x to 8x (step 1x) |
| Min Focus Distance, M | 10 m |
| Exit pupil distance, mm | 48 mm |
| Exit pupil Diameter, mm | 6 mm |
| Field of View (H × V), degree | 8.8°×7.0° |
| Diopter, D | +4D |
| Detection Range, m (Target size: 1.7m×0.5m) | 2600 m |
| Detection Range, m (Verhicle) | 4800 m |
| Rangefinder Characteristics | |
| Wavelength,nm | 905 |
| Measuring Range,M | 1000 m |
| Measurement accuracy,m | ①5m~400m,± 1m；②＞400m,±(d*0.3%) |
| Electrical Characteristics | |
| Display Type | OLED |
| Resolution, pixels | 1024×768 |
| WiFi Frequency,GHz | 2.4 GHz |
| Video/Photo fomat | avi/jpg |
| Built-in memory，GB | 32 G |
| Power Supply，V | 3~4.2V |
| Battery type*QTY/Capacity, mA | Built-in 18650 Batteryⅹ2, external 18500 Batteryⅹ1 |
| External power supply，V | 5V2A |
| Others Characteristics | |
| Operating time (at t=22℃）, hours | ≥17hrs |
| Operation temperature, ℃ | -20℃~+50℃ |
| Storage temperature, ℃ | -40℃~+60℃ |
| Body material | Aluminium alloy |
| Degree of protection, IP code (IEC60529) | IP67 |
| Seismic coefficient, joules | 900g/ms |
| Dimension（L*W*H), mm/inch | 420mm*83mm*90mm/16.53in*3.26in*3.54in |
| Weight(without battery), g/oz | 1040g/36.68oz |
