Longot TR75L | Thermal imaging sight
Thermal imaging sight

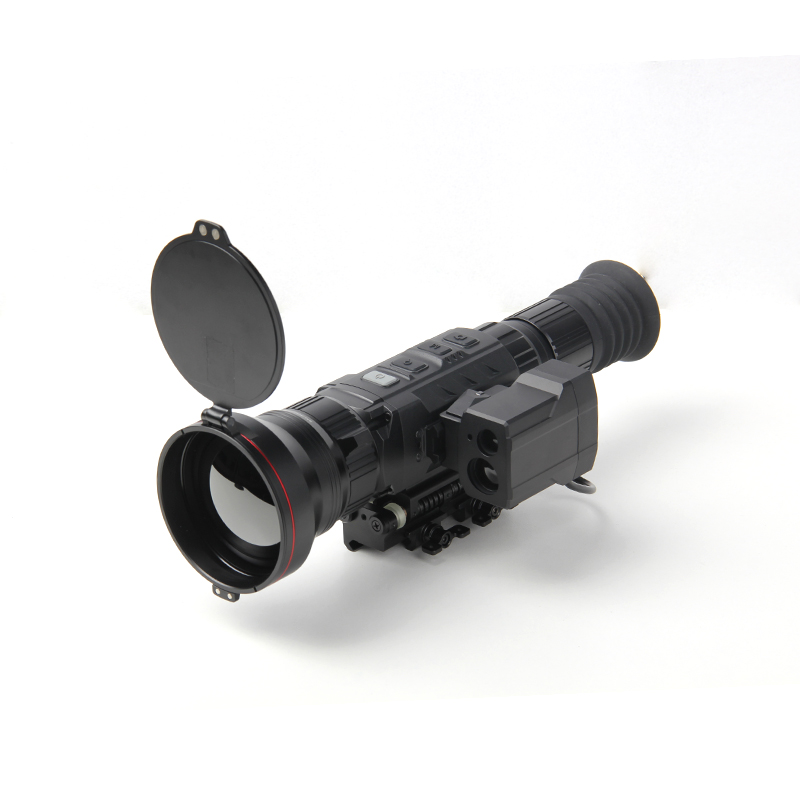

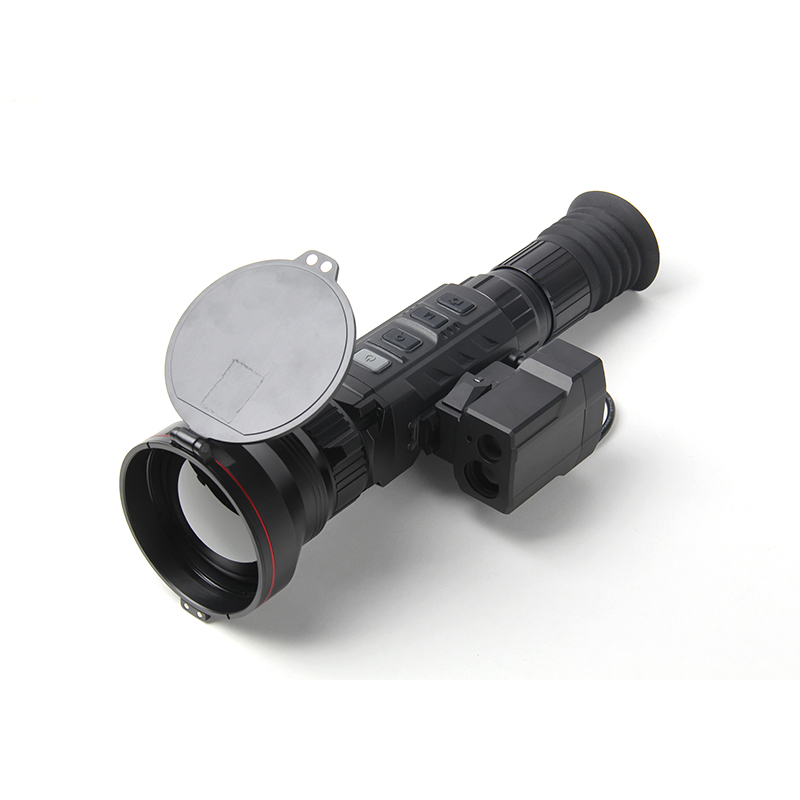

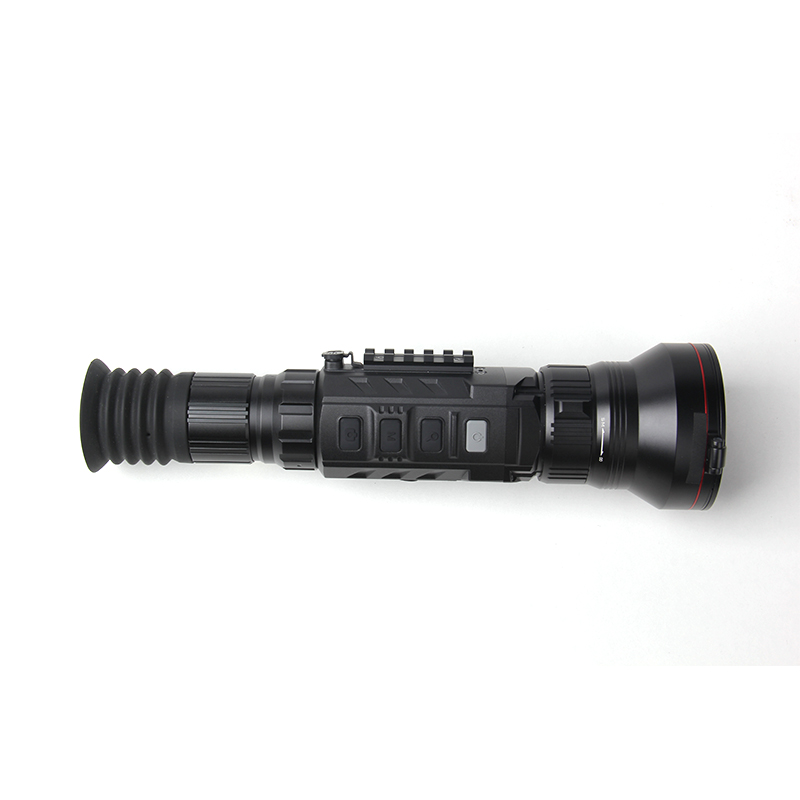

TR75L

Thermal imaging sight

The wide view and easy operation will make your outdoor life get more fun
    ·12μm detector
    ·75mm objective len
    ·OLED 2560*2560 display。
    ·3896m detective range。
    ·IP67 waterproof
SERVICE & SUPPORT   |    CONTACT US

Characteristics

Supports ultra-long-distance thermal detection, with the maximum effective detection distance reaching 3600 yards. It can quickly lock human body, vehicle and other thermal targets in open wild areas, meeting long-distance patrol and reconnaissance needs.
Built-in 2560×2560 high-definition AMOLED high-resolution screen, with high brightness and strong sunlight visibility. The display presents fine imaging details, clear display content and great viewing effect in bright light and dark environments.

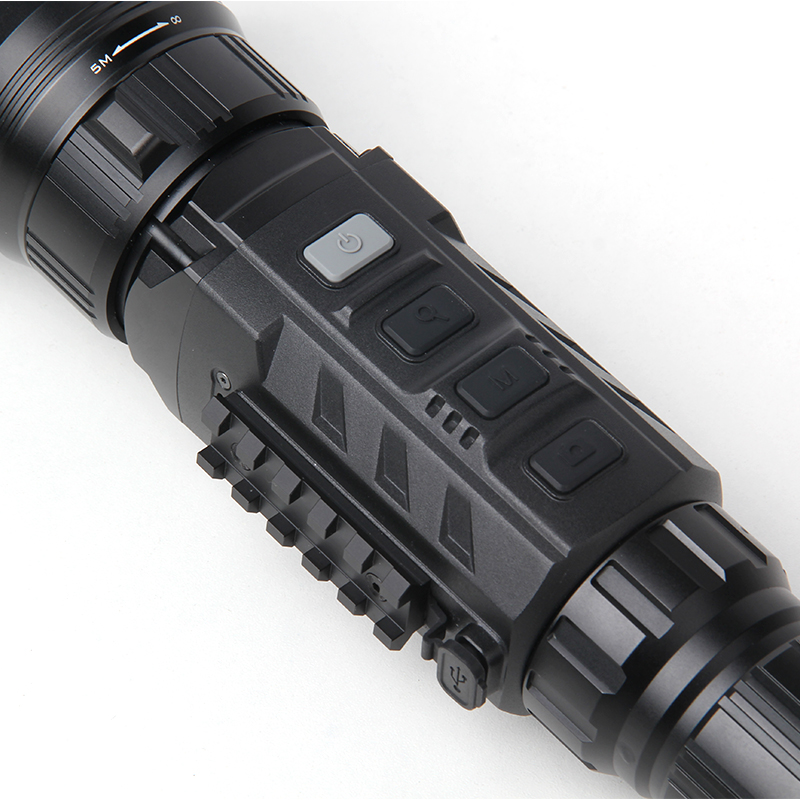

Four-level adjustable digital zoom including 2X, 4X, 8X and 16X. Low magnification for wide-range search and patrol, high magnification for precise target locking, freely switching to adapt to different observation distances.
Exclusive ultra-clear enhancement mode is available. After turning on this mode, it can greatly optimize image details, sharpen edge contours, highlight hidden targets and subtle environmental features, and further enhance reconnaissance and identification ability.

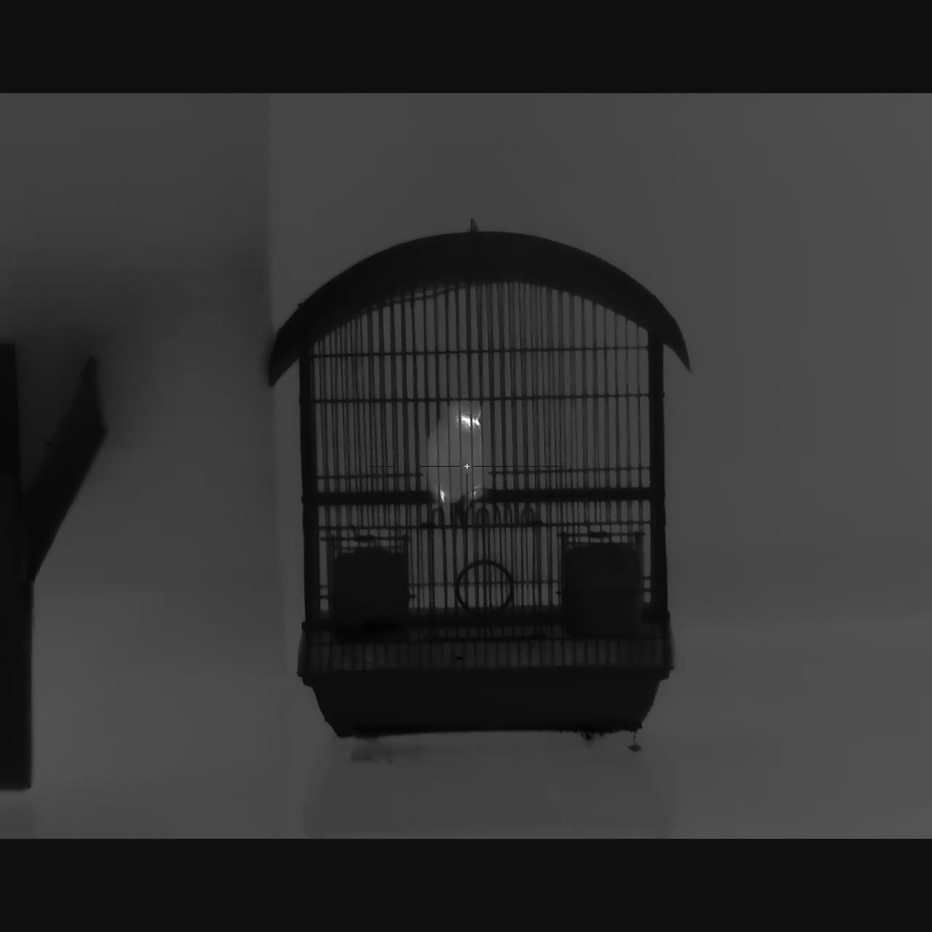

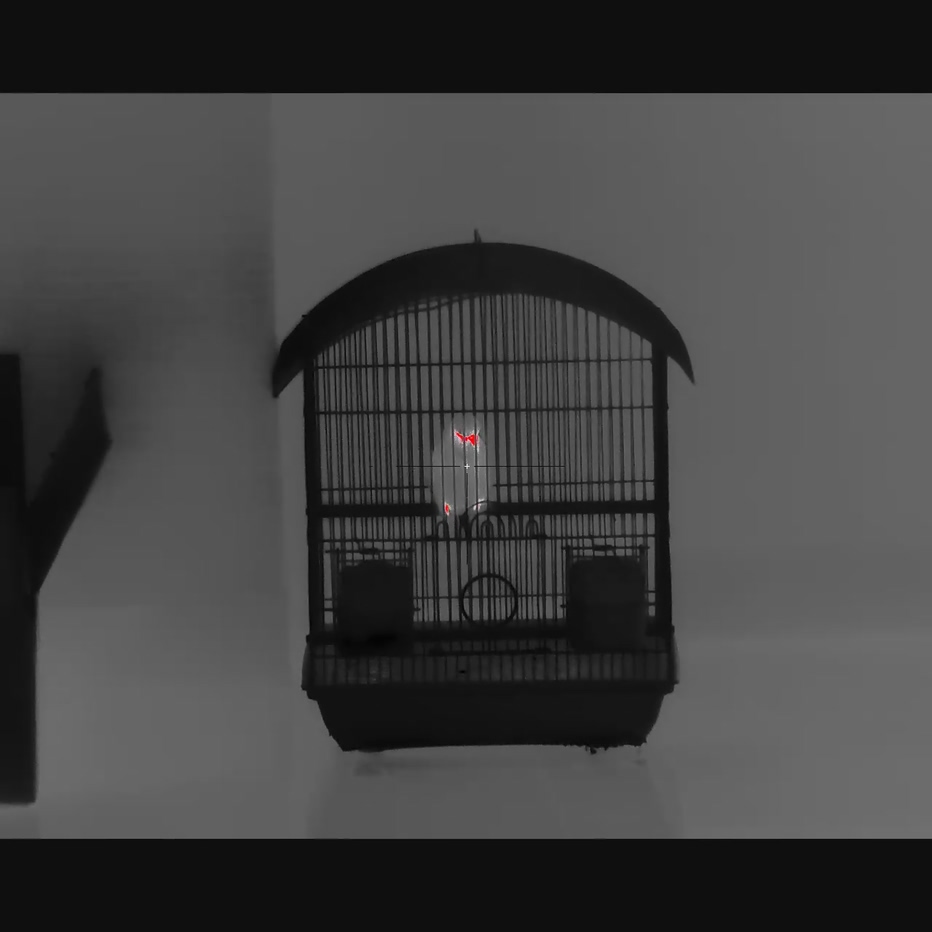

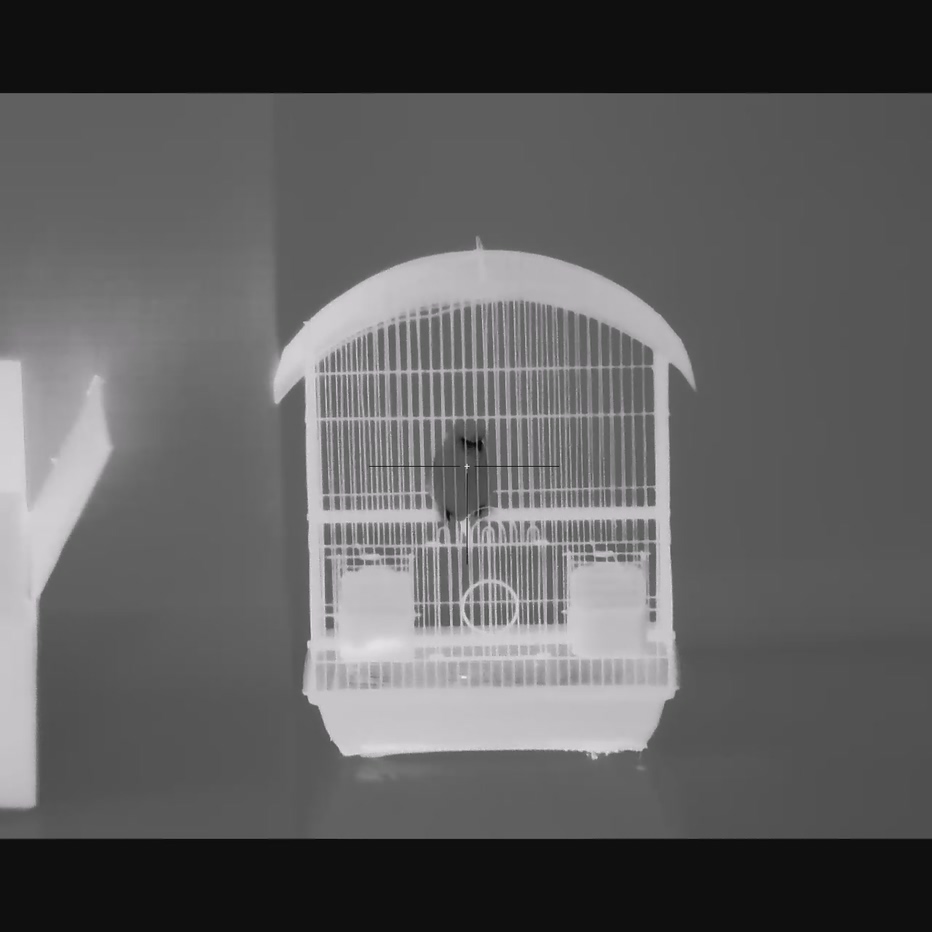

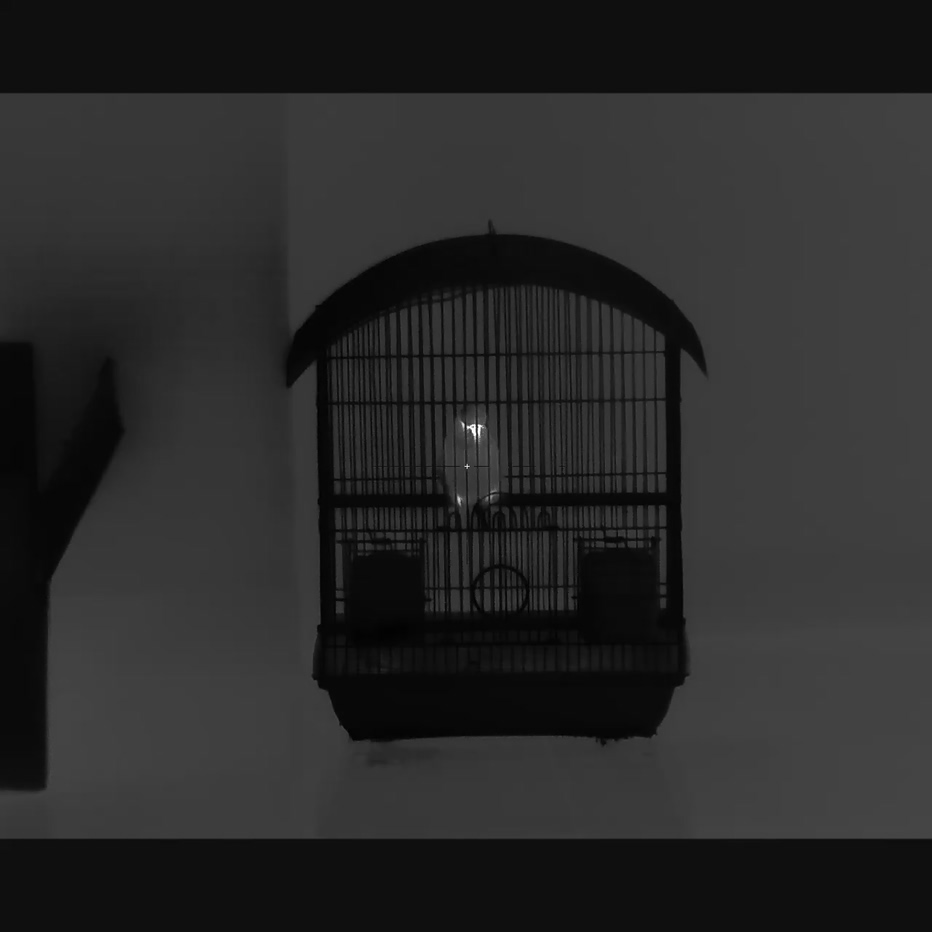

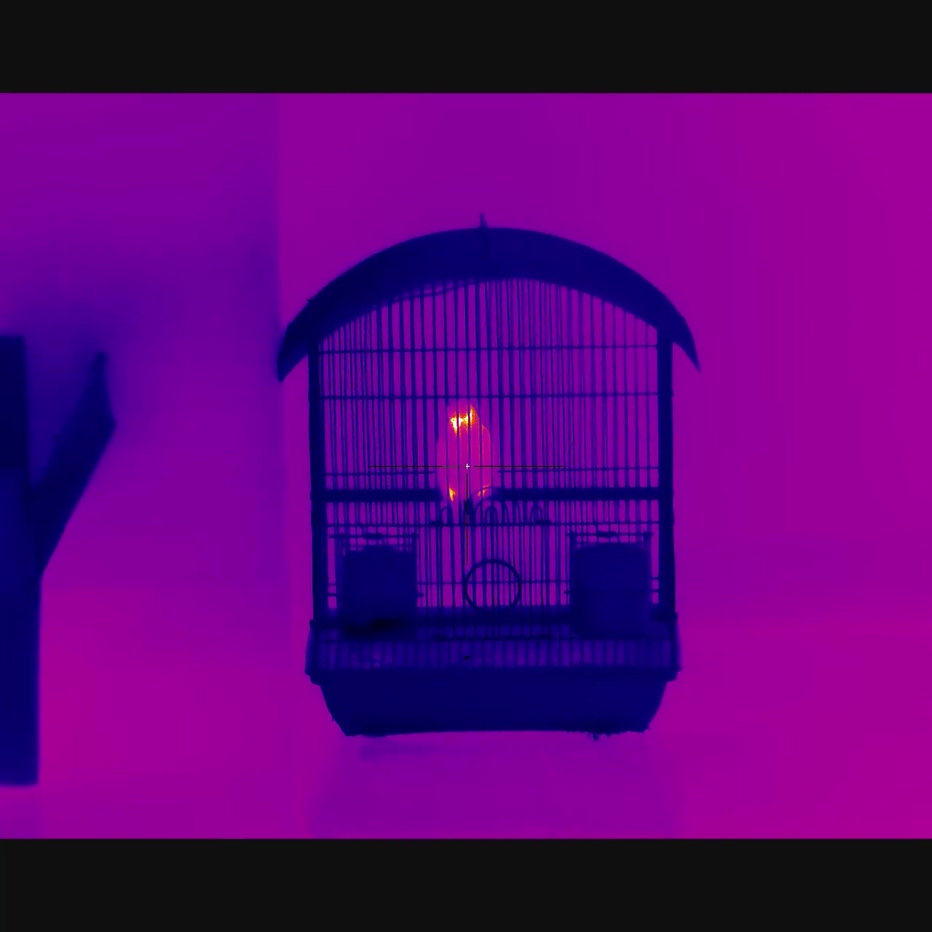

Demonstrate

Specification

ModelTR75L
Detector TypeVox
Resolution, Pixel1280×1024
Pixel Size, μm12μm
NETD, mK≤25mk
Frame Rate, Hz≤30Hz
Optical Characteristics

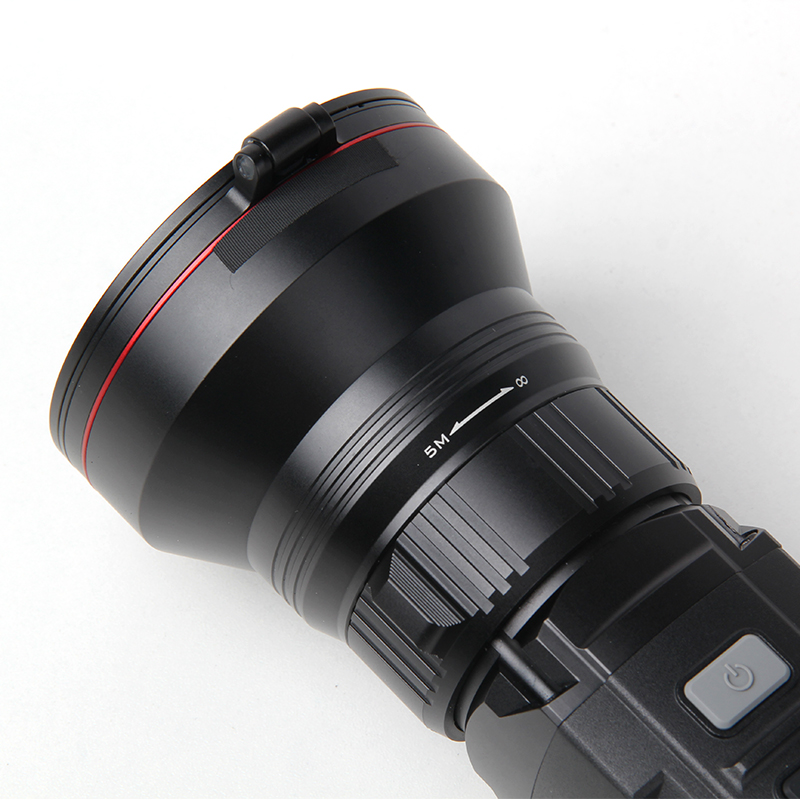

Objective lens, mm
75mm/F1.0
Magnification, x2x
Digital zoom, x2.0x～32.0x
Min Focus Distance, M10m

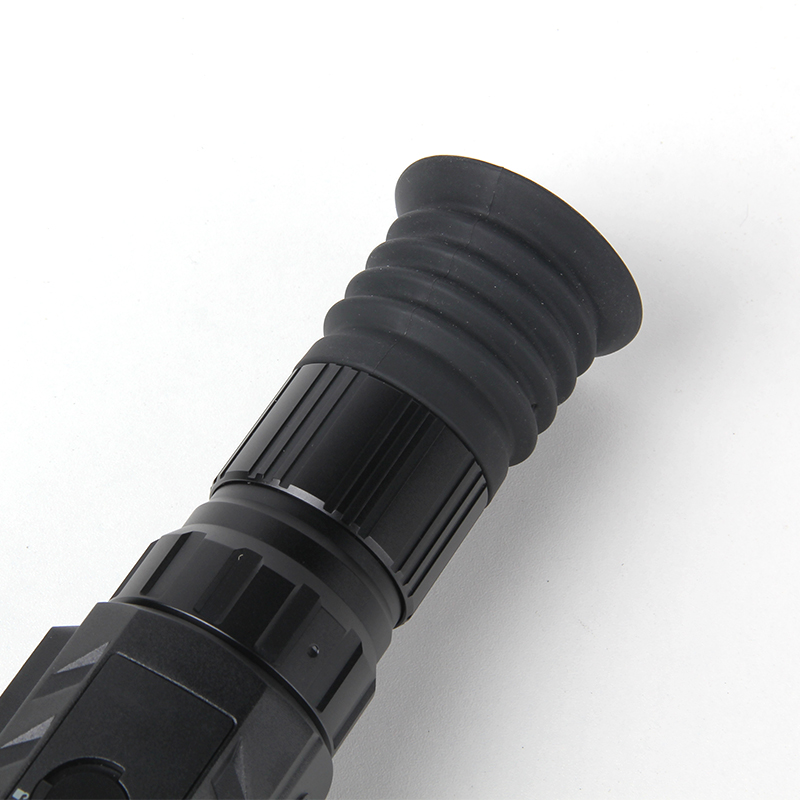

Exit pupil distance, mm60mm
Exit pupil Diameter, mm6mm
Field of View (H × V), degree11.7°*9.4°
Diopter, D±3d
Detection distance, m (target size :1.7 m ×0.5 m)3896m
Detection distance, m (Vehicle :2.3 m ×2.3 m)7200m
Rangefinder Characteristics
Wavelength,nm
905nm
Measuring Range,M1000m
Measurement accuracy,M

1

Electrical Characteristics
Display TypeAMOLED
Resolution, pixels2560×2560
WiFi Frequency,GHz2.4GHz
Video/Photo fomatMP4/JPG
Built-in memory，GB128G
Power Supply，V3.7V
Battery type*QTY/Capacity, mA
Lithium-ion battery pack IBP-1/4400mAh
External power supply，V5V2A
Others Characteristics
Operating time (at t=22℃）, hours
6hrs
Operating temperature, ℃-20℃~+50℃
Storage temperature, ℃-30℃~+60℃
Body materialAluminium alloy
Degree of protection, IP code (IEC60529)IP67
Felt recoil，G/ms1000 g/s² (300 Win./7mm Mag)
Dimension（L*W*H), mm/inch

318.8*99.8*84.8mm12.55in*3.93in*3.34in

Weight(without battery), g/oz1273g/44.9oz
