Characteristics
Demonstrate
Specification

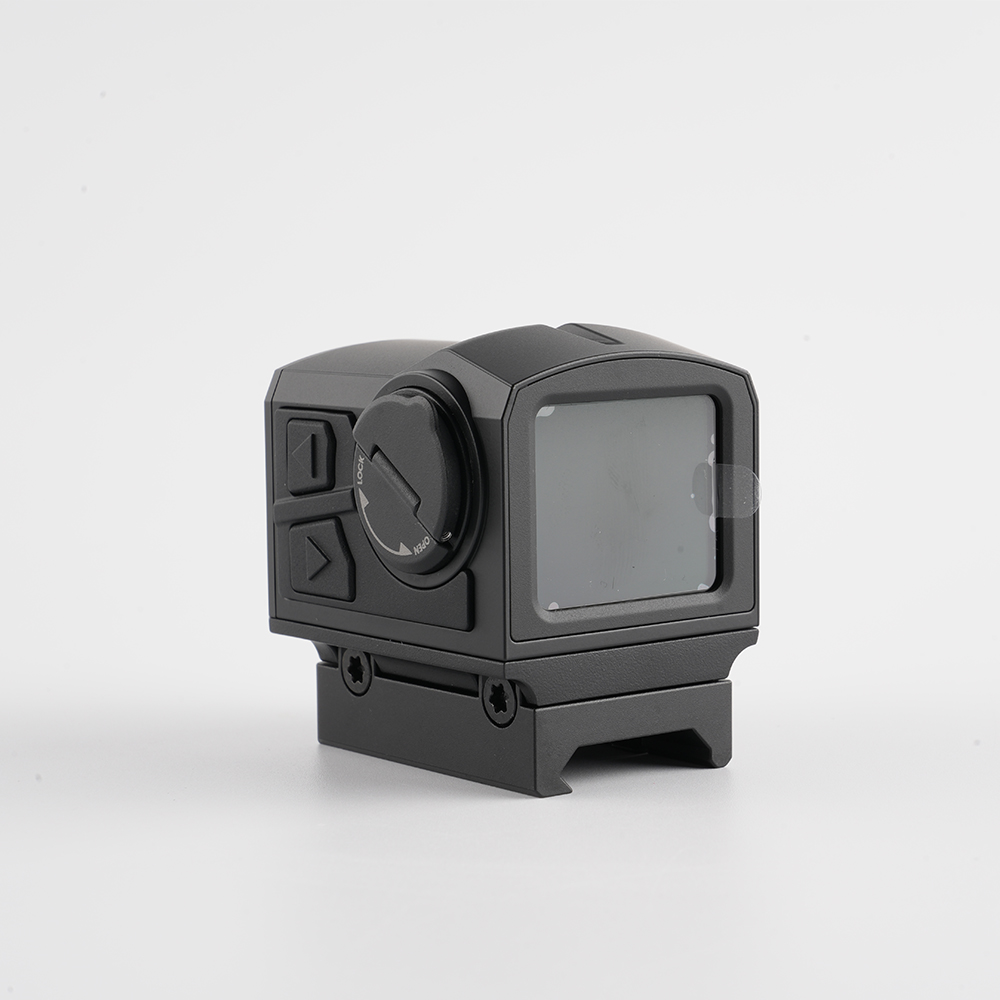

| Model | PR2 |
| Detector Type | VOx |
| Resolution, Pixel | 256×192 |
| Pixel Size, μm | 12μm |
| NETD, mK | ≤25mk |
| Frame Rate, Hz | 60 Hz |
| Optical Characteristics | |
| Objective lens, mm | 13 mm F1.0 |
| Magnification, x | 0.5x |
| Digital zoom, x | 1~2x |
| Min Focus Distance, M/Y | 2 m~∞ |
| Exit pupil distance, mm | 45 mm |
| Exit pupil Diameter, mm | 6 mm |
| Field of View (H × V), degree | 13.5°×10.1° |
| Detection distance, m (Target size: 1.7m×0.5m) | 900 m |
| Detection distance, meters (vehicle) | 1200 m |
| Electrical Characteristics | |
| Display Type | 1.4-inch AMOLED HD display |
| Resolution, pixels | 360×300 |
| Power Supply，V | Rated 3.7V |
| Battery type*QTY/Capacity, mA | CR2×1 600 mAh |
| External power supply，V | 5V 2A |
| Others Characteristics | |
| Operating time (at t=22℃）, hours | ≤5h |
| Operating temperature, ℃ | -20℃~+50℃ |
| Storage temperature, ℃ | -20℃~+50℃ |
| Body material | PC+Aluminum Alloy |
| Degree of protection, IP code (IEC60529) | IP66 |
| Seismic coefficient, S² | 200g/S² |
| Dimension（L*W*H), mm/inch | 50×38×44mm/1.97×1.5×1.73in |
| Weight(without battery), g/oz | 80 g/2.82 oz |
