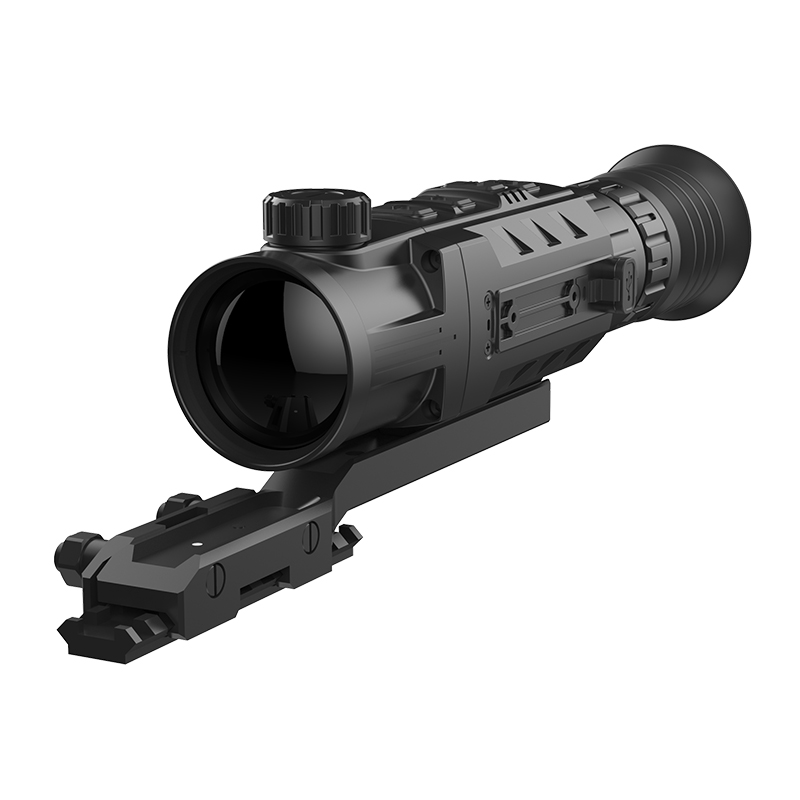

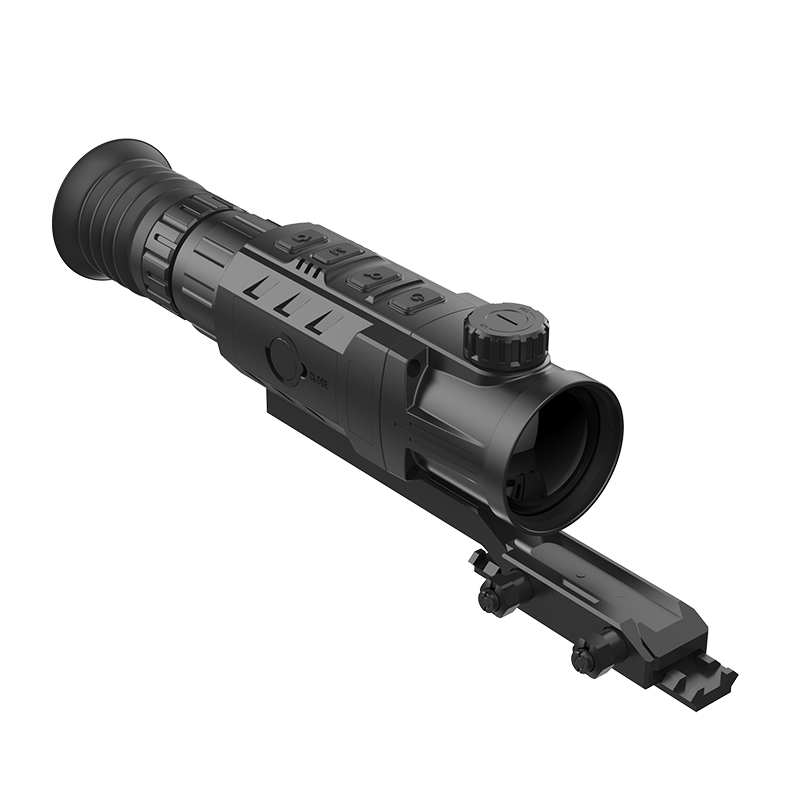

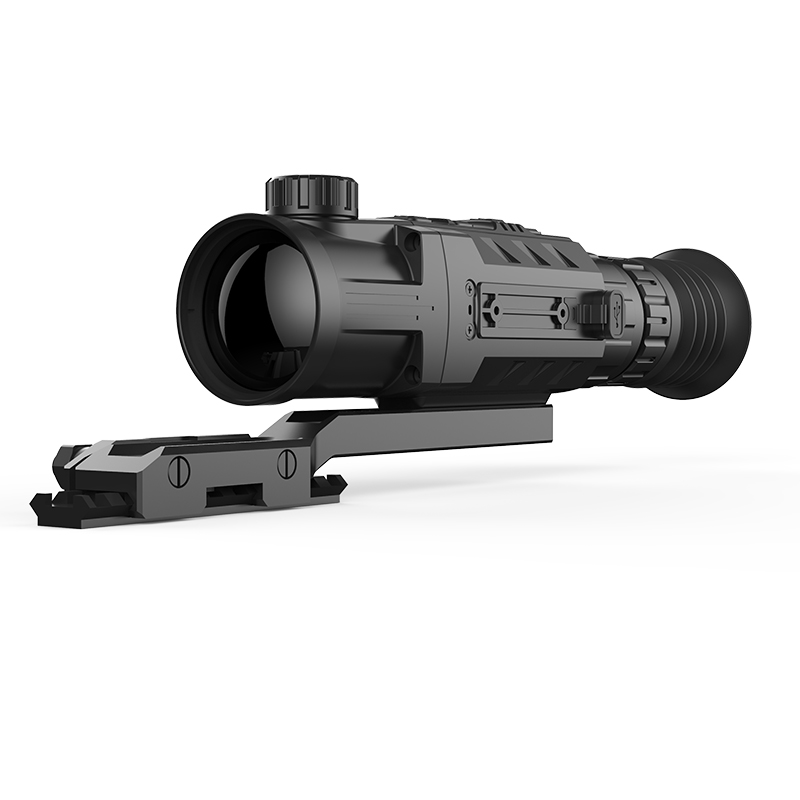

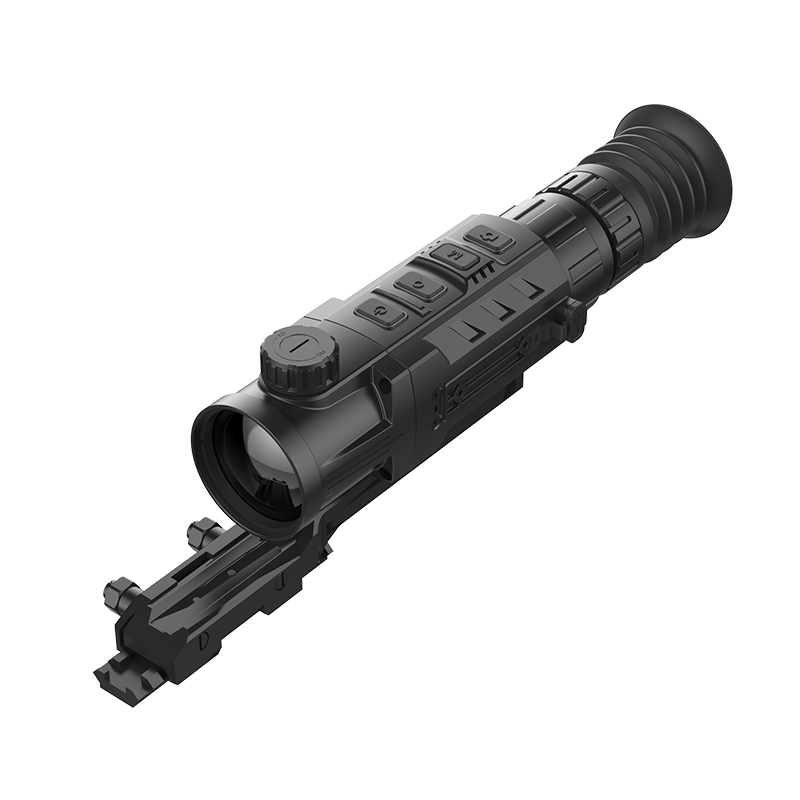

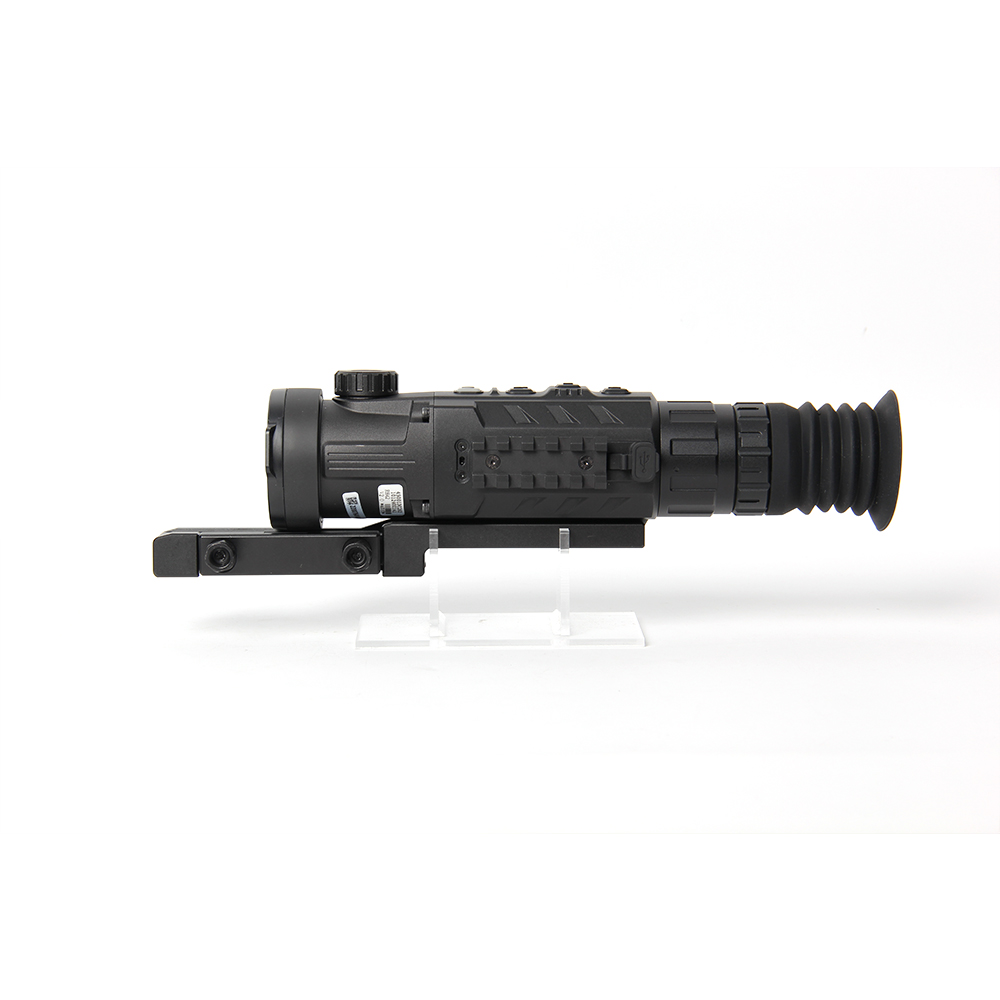

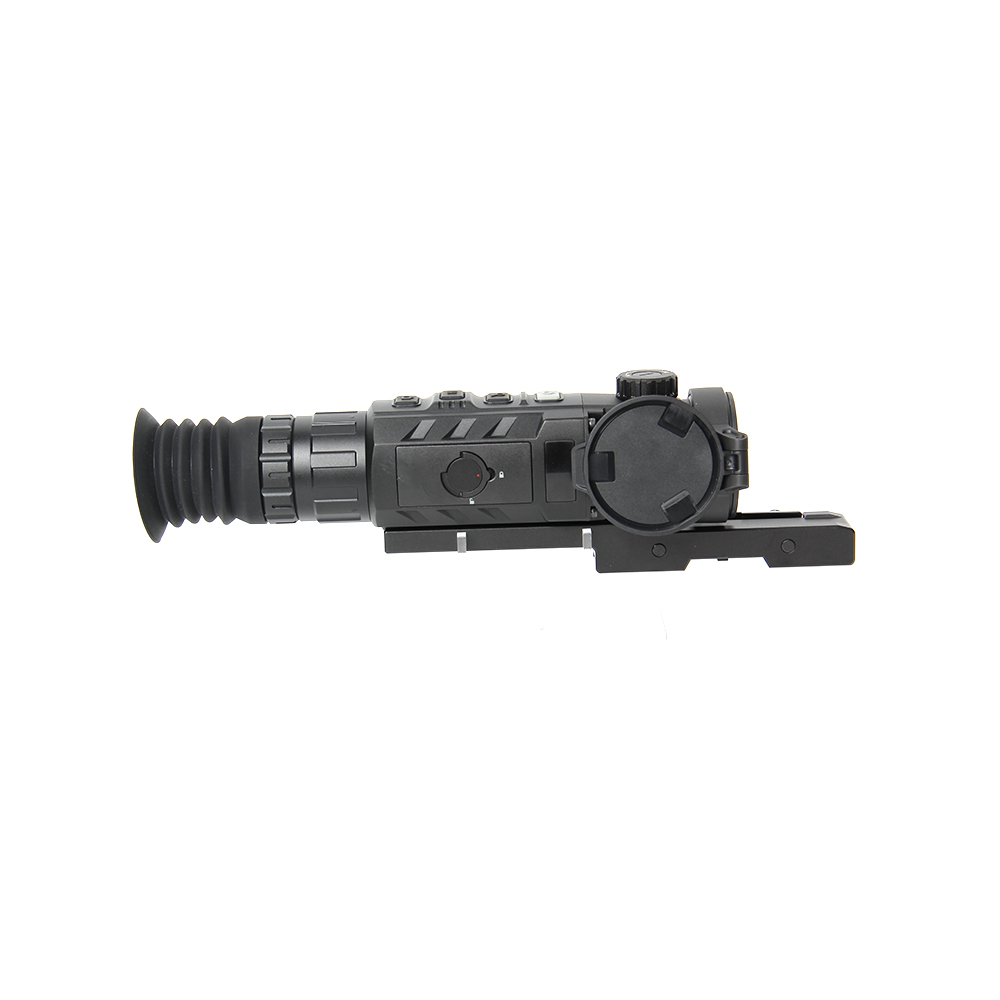

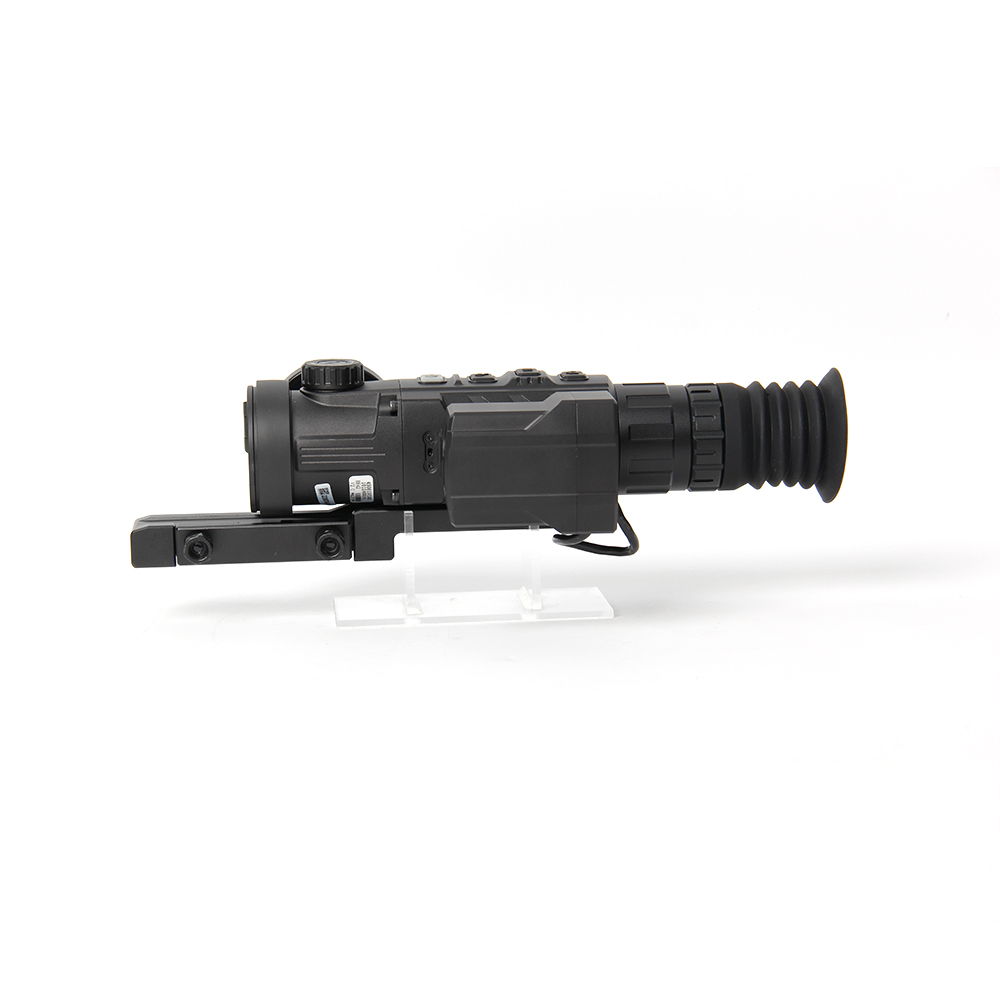

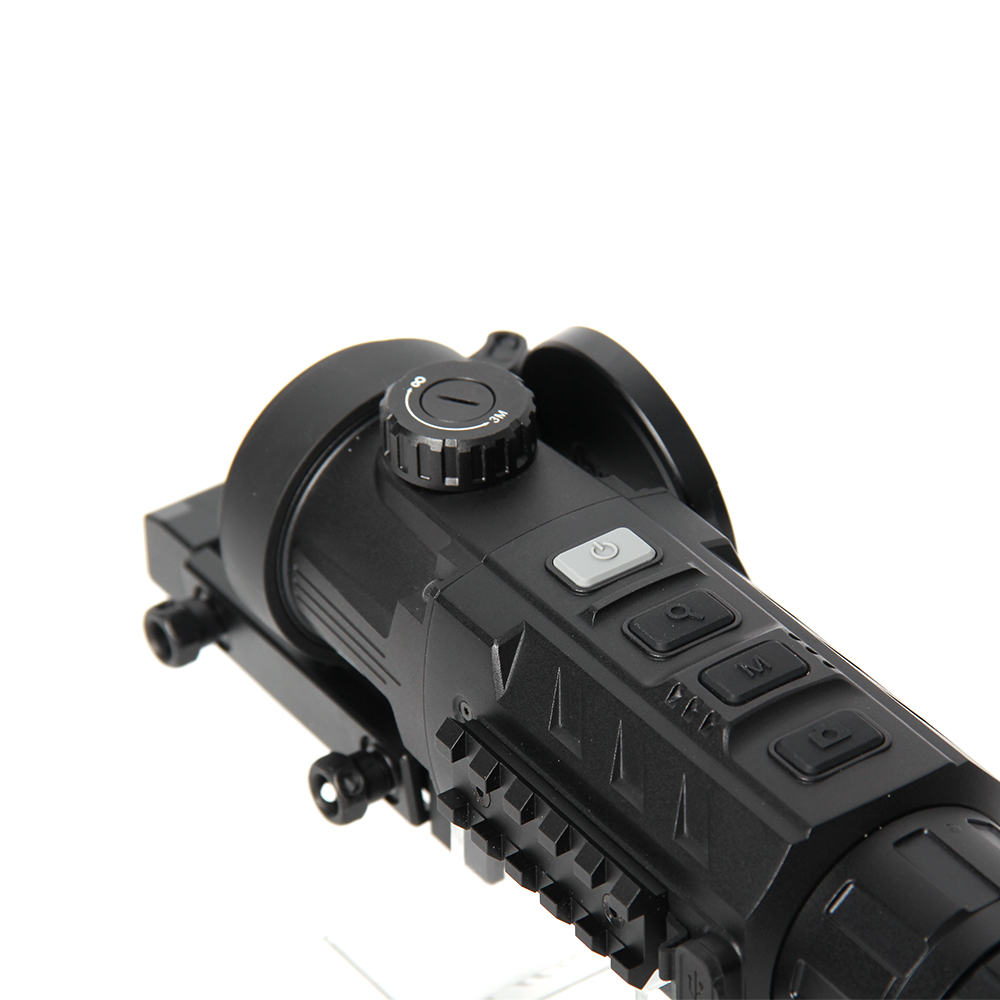

TL342LRF

Characteristics

The TL series supports fast magnification of images by 2x, 3x and 4x electronic magnification for increasing visual amplification.

TL series products, supporting photo and video functions, have 32GB memory.

The image is clearer, the detail is more prominent。

TL series support users to set the zeroing profile and zeroing distance in the range of 1 to 999m. The default distance is 100m、200m、300m;
Select the appropriate zeroing distance according to different target.

Demonstrate

Pseudo Color

Red Heat

White Heat

Black Heat

Application

Search and Rescue

Outdoor Adventure

Night Patrol

Personal Security

Specification

Model	TL342 LRF
Type	Uncoole
Resolution, pixels	384×288
Pixel Size,	12μm
NETD	≤20mk
Frame rate	60Hz
Objective Lens	F42mm /1.0
Field of View, degrees	6.3×4.7°
Magnification, ×	4~16
E-zoom, ×	1 / 2 / 3 / 4
Eye relief, mm	55
Exit pupil diameter, mm	6
Detection Range, m (Target size: 1.7mx0.5m, P(n)=99%)	2197
Display type	OLED
Resolutio	1024×768
Size, inch	0.39
Battery Type / Capacity / Output Voltage	Li-Ion Battery Pack IBP-1 / 4400mAh / DC3.7V
Power Supply	3V~4.2V
External Power Supply	5V (Type C USB)
Max. Operating Time (at t=22℃), h	6
Max. Recoil Power on Rifled Weapon, g/s²	1000
Degree of protection, IP code	IP67
Amount of built-in memory, Gb	32
Operating Temperature Range, ℃	-20~+50
Laser Rangefinder	√
Weight, g	840
Dimension, mm	250×65×58
Wavelength, nm	905
Max. Measuring Range, m/y	1000/1094
Measurement Accuracy, m	±1
