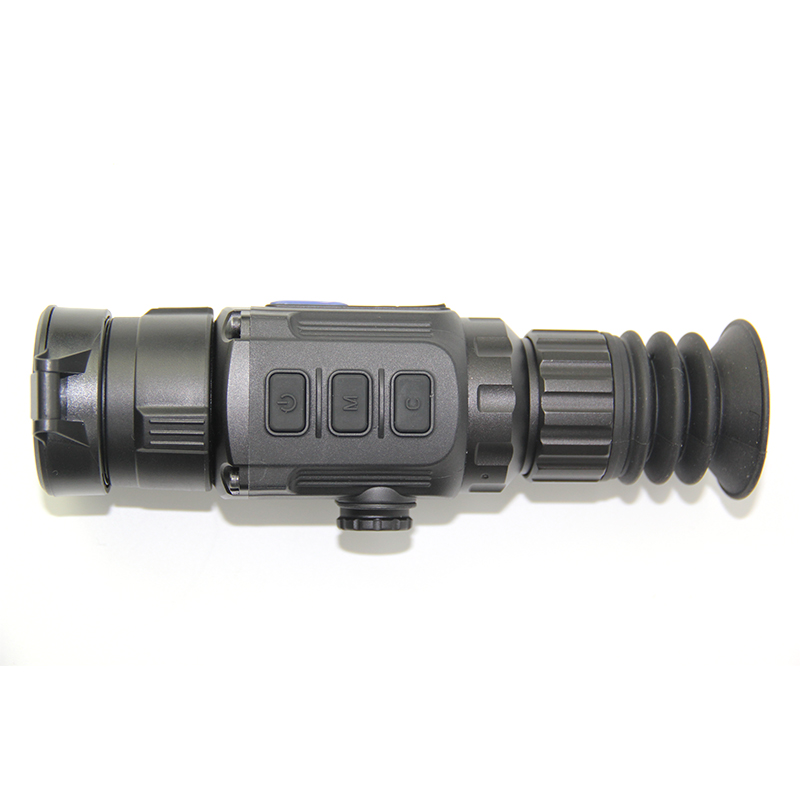

A9 Pro
THERMAL SIGHTS

A9 Pro

THERMAL SIGHTS

The wide view and easy operation will make your outdoor life get more fun
    ·17μm detector
    ·35mm objective len
    ·LCOS display
    ·Physical distance measurement
    ·1250m detective range
    ·IP66 waterproof
Application： Night Patrol Personal Security Search and Rescue Outdoor Adventure
SERVICE & SUPPORT   |    CONTACT US

Characteristics

Vanadium oxide sensor uses advanced passive infrared thermal imaging technology. Its 384*288 resolution with 50Hz frequency sensitivity detector offer experience excellent visual effects；
The image is smooth, high definition, highlighting target. The background is rich and the recognition is high. Different image modes can be switched according to different environments to achieve the effect of high recognition of the target is prominent；
Every machine has passed strict earthquake resistance test；

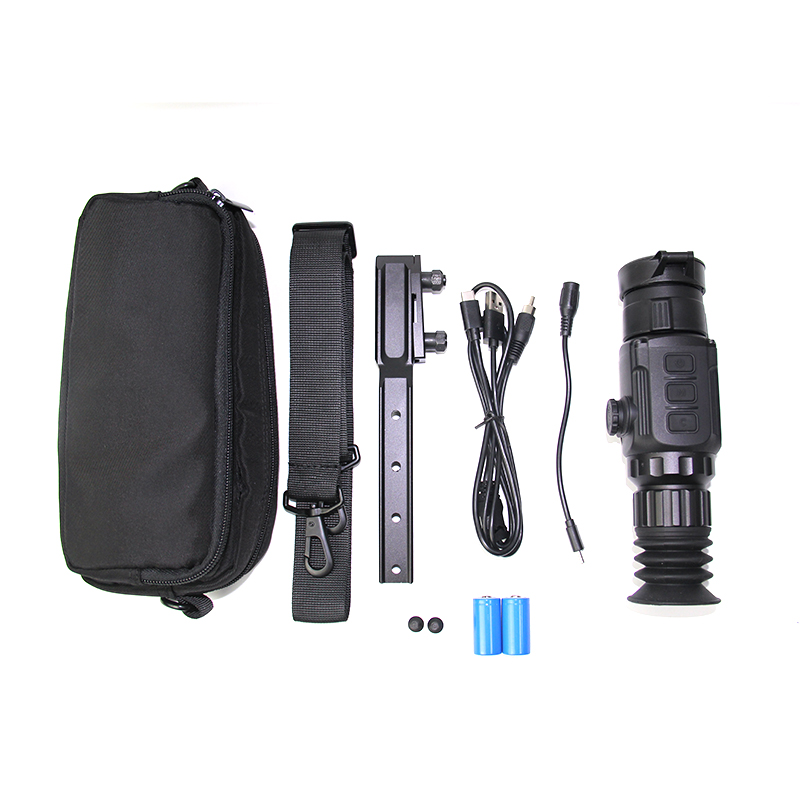

connect external display or power bank for long battery Life

Demonstrate

Application

Specification


ModelA9PRO
Detector TypeVox
Resolution, Pixel384×288
Pixel Size, μm17μm
NETD, mK≥50mk
Frame Rate, Hz≤30Hz
Optical Characteristics

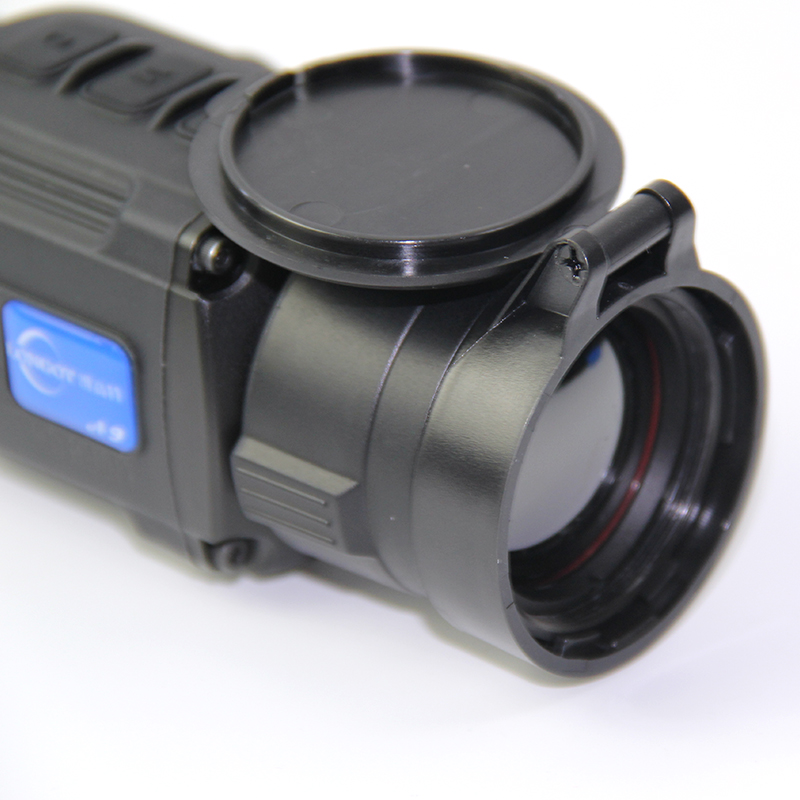

Objective lens, mm35mm
Magnification, x2.02x
Digital zoom, x1x、2x、3x、4x
Min Focus Distance, M/Y5m
Exit pupil distance, mm45mm
Exit pupil Diameter, mm6mm
Field of View (H × V), degree10.7°×8°
Diopter, D-5D ~ +5D
Identify distances, m (Target size: 1.7m×0.5m)607m
Electrical Characteristics
Display Type
LCOS
Resolution, pixels1280×960
WiFi Frequency,GHz2.4GHz
Video/Photo fomatJPG/MP4
Built-in memory，GB16G
Power Supply，V3V or 3.7V
Battery type*QTY/Capacity, mACR123 × 2
External power supply，V5V2A
Others Characteristics
Operating time (at t=22℃）, hours
5V2A
Operating temperature, ℃-10℃~+50℃
Storage temperature, ℃-20℃~+60℃
Body materialPA66 GF30
Degree of protection, IP code (IEC60529)IP67
Seismic coefficient, joules6000J/ms
Dimension（L*W*H), mm/inch195mm×61mm×61mm7.68in×2.40in×2.40in
Weight(without battery), g/oz<420g/14.81oz
