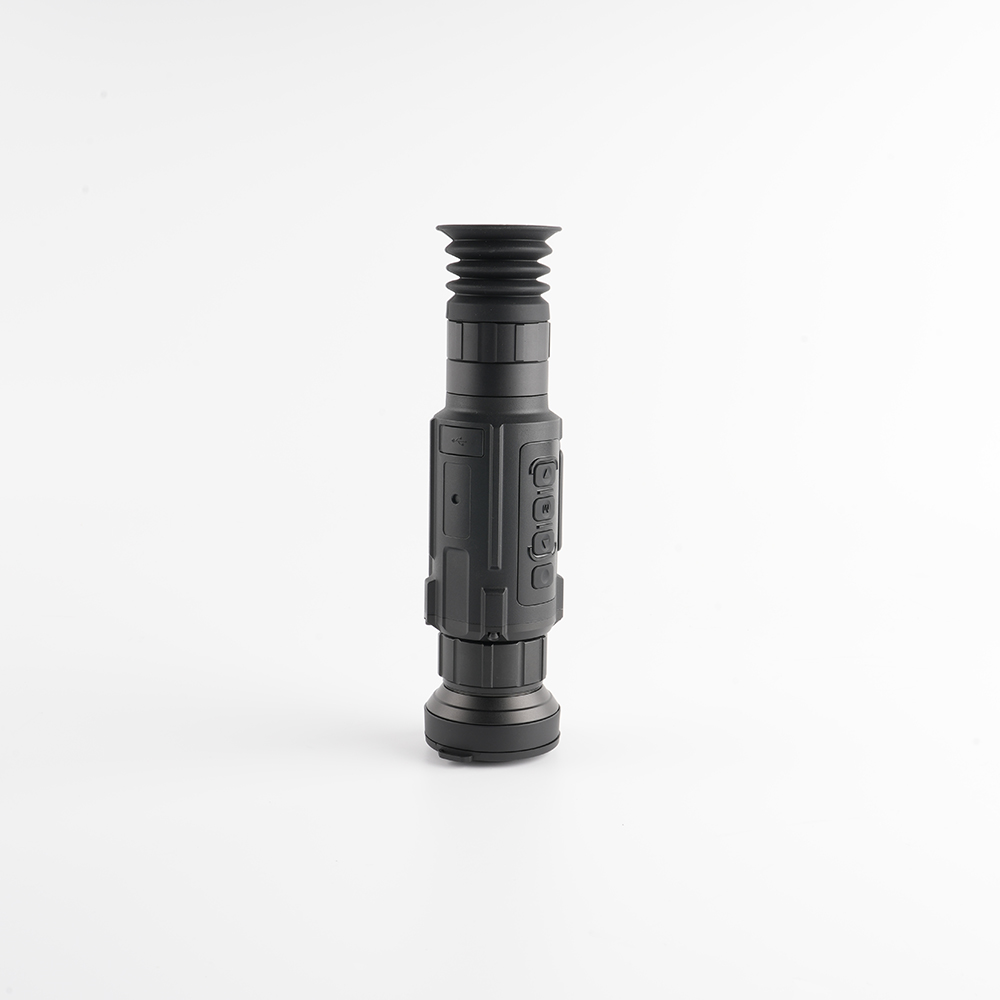

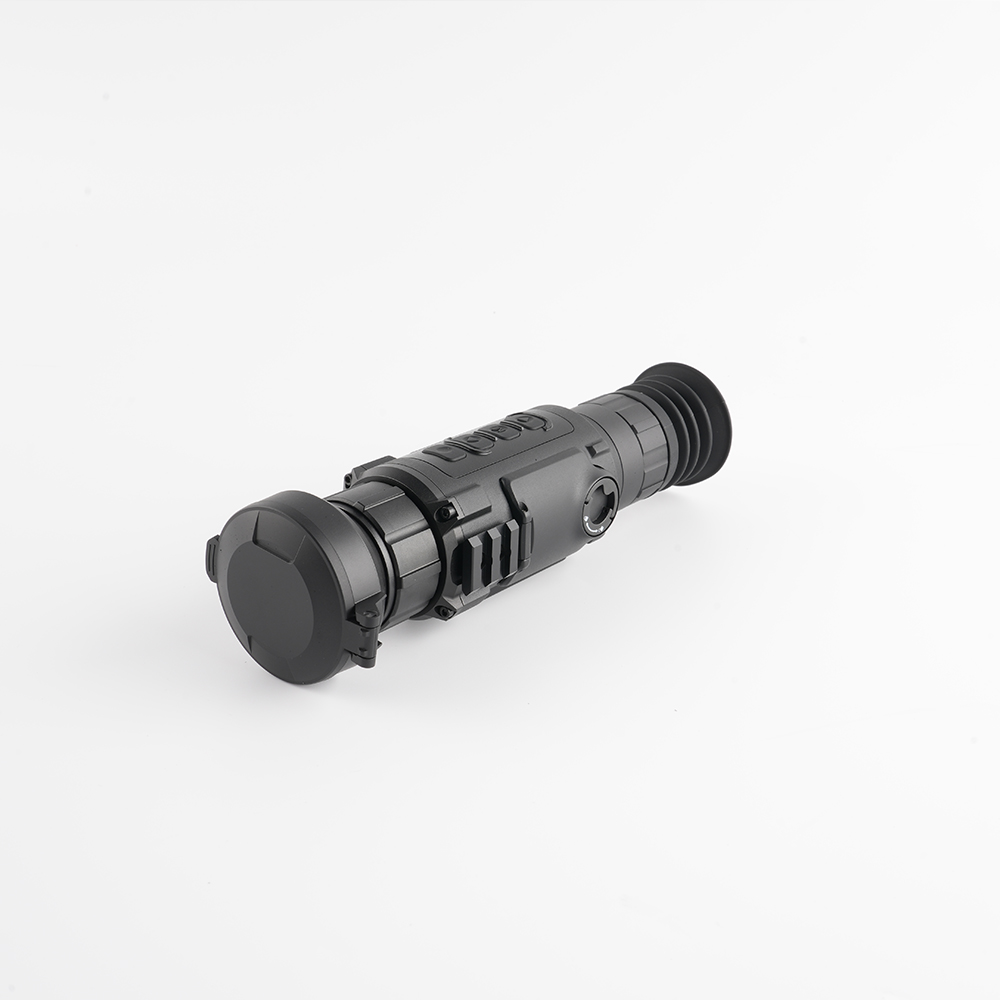

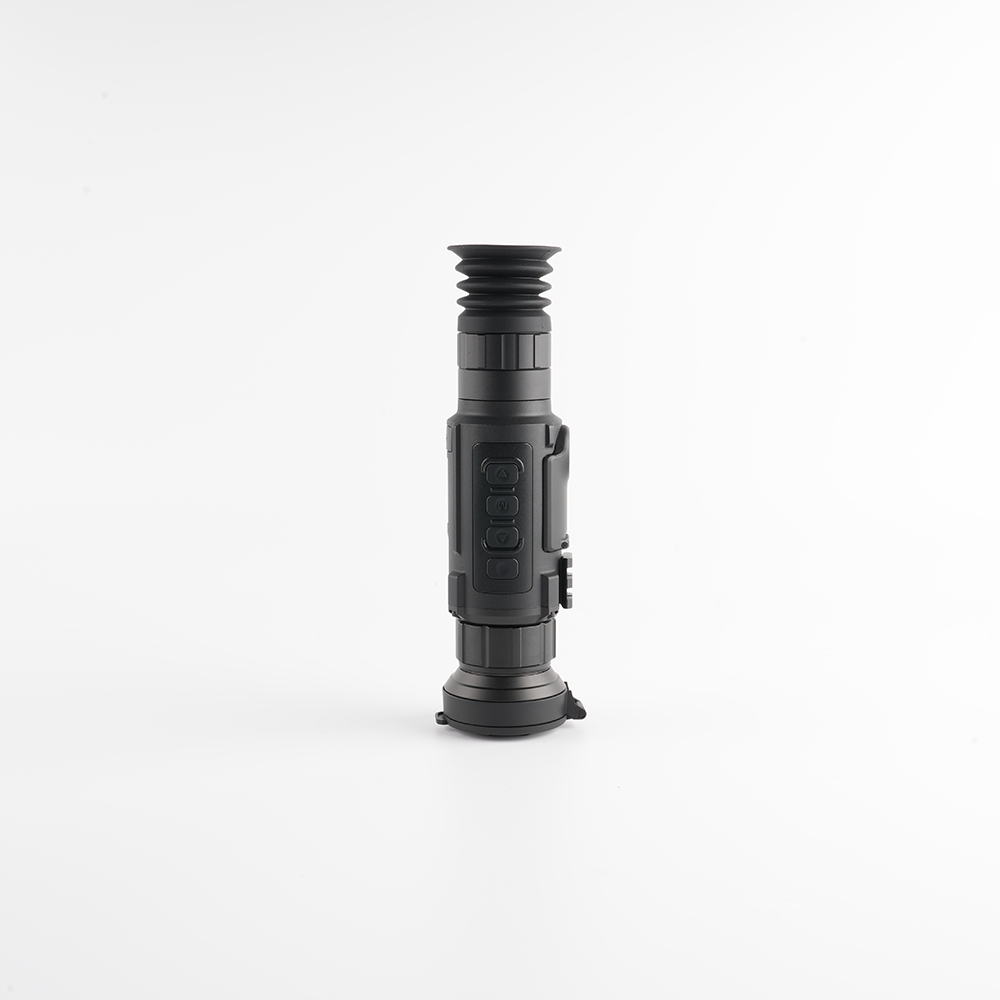

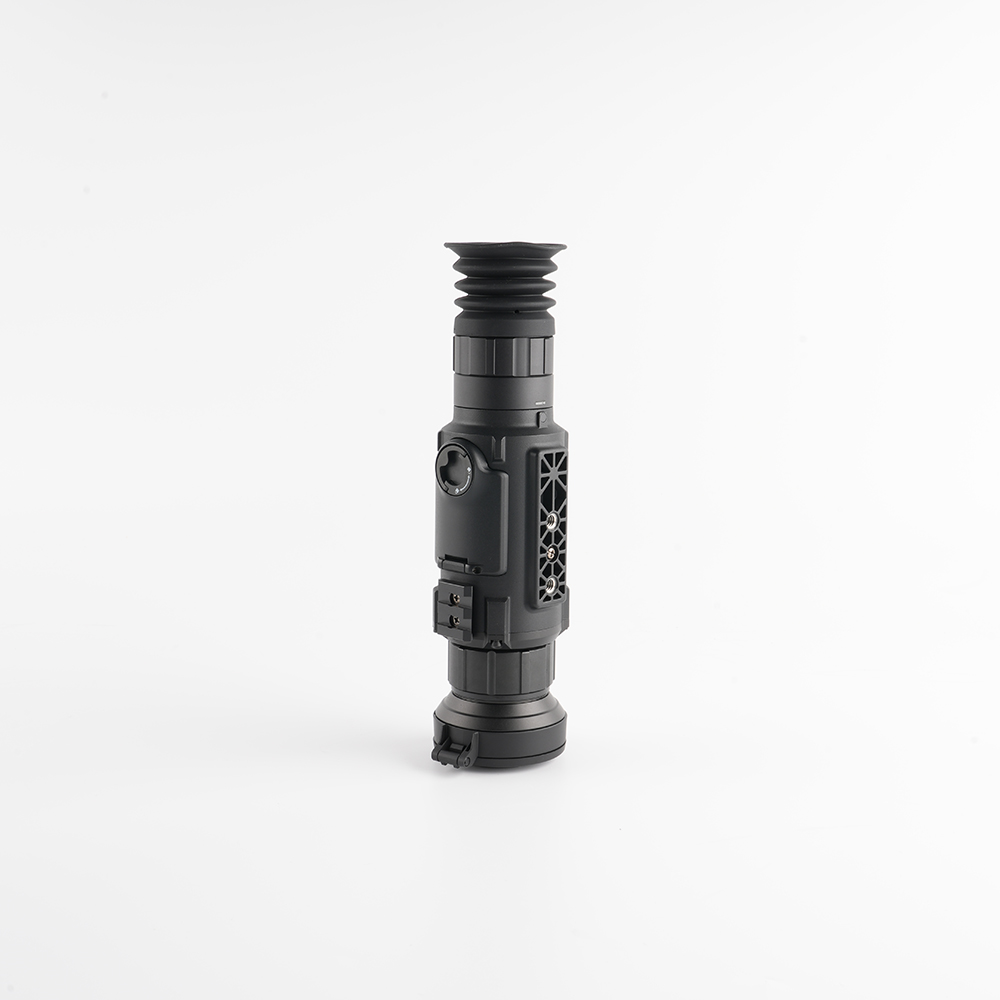

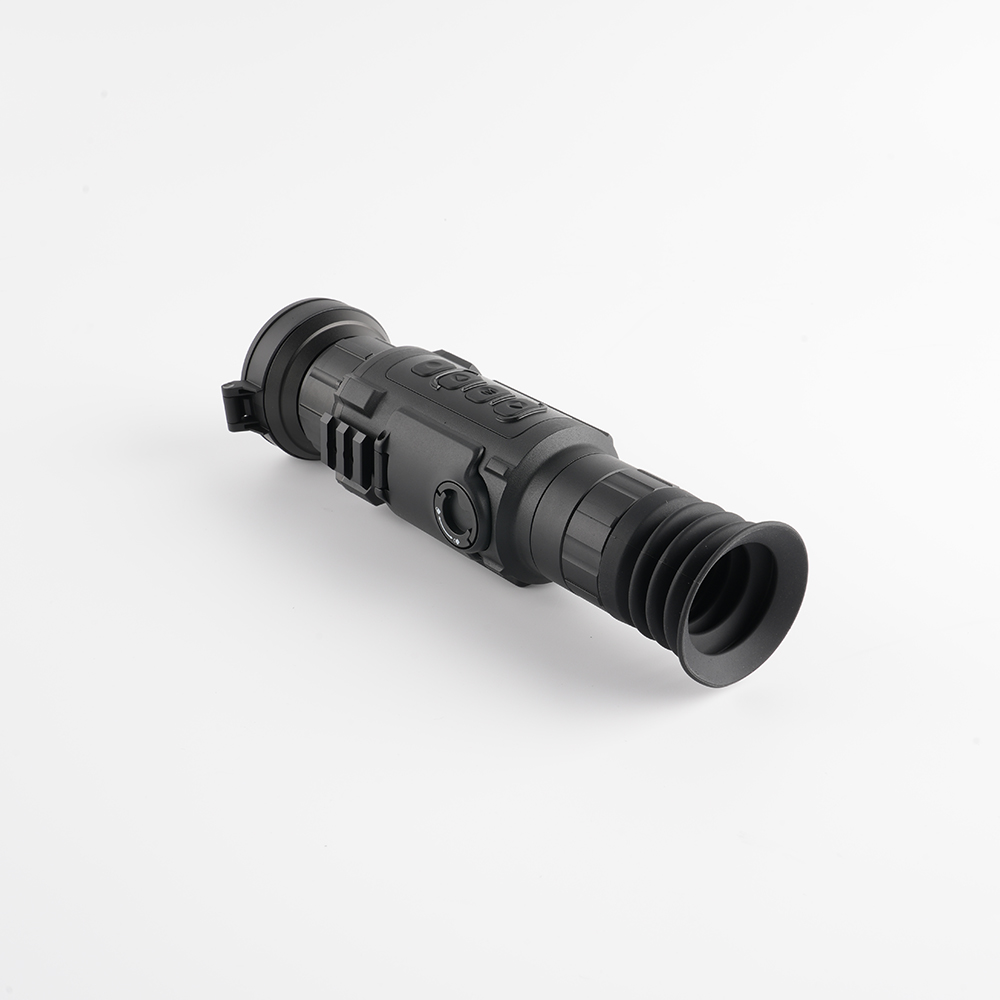

Monocular thermal sights aiming

LGT LY335

Monocular thermal sights aiming

Cold-resistant, low-temperature resistant and cost-effective 1500-meter detection distance
    ·0.39 inch OLED display resolution 1024X768
    ·NETD：35 mk（@25℃，F#=1.0）
    ·Scene mode: city, forest, stone and sky mode.
    ·3D digital noise reduction function
    ·Image detail enhancement function
    ·Lens focal length is 35mm.
    ·Wi-Fi
    ·Digital amplification
    ·False color mode switching
    ·Cross division function
    ·Capturing pictures and videos
    ·Battery anti-reverse connection protection
Application： Night Patrol Personal Security Search And Rescue Outdoor Adventure
SERVICE & SUPPORT   |    CONTACT US

Characteristics

adopts 0.39-inch OLED display screen resolution: handheld and ordinary gun aiming mode 1024x768 @p@ netd: 35mk (@ 25℃, F#=1.0)
Scene mode: city, forest, stone and sky mode.
Four CR123A/RCR123
A-type replaceable batteries supply power
Support type-c external power supply
Can run continuously for more than 6 hours.
adopts advanced passive infrared thermal imaging technology
with resolution of 384X288, and the high-sensitivity detector
supports 3D digital noise reduction function
supports image detail enhancement function
thermal imaging lens focal length is 35mm.

Demonstrate

Application

Specification


Model
LY335
Detector TypeVox
Resolution, Pixel384×288
Pixel Size, μm12μm
NETD, mK≥50mk
Frame Rate, Hz≤30Hz
Optical Characteristics
Objective lens, mm
35mm
Magnification, x3.0x
Digital zoom, x1x、2x、4x、8x
Min Focus Distance, M5m/5.468yd
Exit pupil distance, mm45mm
Exit pupil Diameter, mm6 mm
Field of View (H × V), degree7.53°×5.65°
Diopter, D-5D~+3D
Identify distances, m (Target size: 1.7m×0.5m)924 m
Electrical Characteristics
Display Type
OLED
Resolution, pixels1024×768
WiFi Frequency,GHz2.4GHz
Video/Photo fomatmp4/jpg
Built-in memory，GB16G-64G
Power Supply，V3~4.2V
Battery type*QTY/Capacity, mA16340 Battery × 4/2800mAh
External power supply，V5V 2A
Others Characteristics
Storage temperature, ℃6hrs
Body material-30℃~+60℃
Degree of protection, IP code (IEC60529)IP67
Seismic coefficient, joules≤6000J
Dimension（L*W*H), mm/inch
231mm×61mm×59mm/9.09in×2.40in×2.32in
Weight(without battery), g/oz595g/20.99oz
